The D2 steel was heat treated and ground by Devin Thomas. The PSF27 specimens were heat treated by Michael Drinkwine. The CPM-D2 specimens were heat treated and ground by myself. All were heat treated with a 30 minute hold time, plate quench, and cryo followed by a double temper.
Full Answer
How does cryogenic processing affect D2 wear resistance?
There are many studies on the effects of cryogenic processing on D2 in terms of wear resistance. Some of those claim that a long hold time, such as 36 hours, at cryogenic temperatures lead to an improvement in edge retention.
How did you heat treat your D2 steel?
The D2 steel was heat treated and ground by Devin Thomas. The PSF27 specimens were heat treated by Michael Drinkwine. The CPM-D2 specimens were heat treated and ground by myself. All were heat treated with a 30 minute hold time, plate quench, and cryo followed by a double temper.
How does DCT affect martensite formation at cryogenic temperatures in D2 steel?
In relation to the effect of DCT, the present data adds information on the kinetics of martensite formation at cryogenic temperatures in D2 steel and suggests that DCT not only reduces the fraction of retained austenite in the material, but also the total number of retained austenite regions.
What happens to the toughness of steel after cryogenic or subzero processing?
The most commonly reported result of subzero or cryogenic processing of steel was a reduction in toughness [3,5-7,9-10,13,15,17,18,20,22]. Typically the reduction in toughness after cryo or subzero processing is attributed to the transformation of retained austenite. Retained austenite is a ductile phase and therefore can help improve toughness.
How do you treat Cryo steel?
To perform cryogenic hardening, metal is first exposed to heat using a conventional heat treatment process. Next, the metal is slowly cooled using liquid nitrogen. Once the metal is submerged or otherwise exposed to liquid nitrogen, its temperature begins to drop.
How cryogenic treatment is done?
Cryogenic processing is performed by slowly cooling parts in a controlled bath of liquid nitrogen or a freezer, holding the parts until equilibrium is reached with the liquid's temperature. Nitrogen is a liquid at -320℉. Cryogenically processed parts are generally held for one hour per inch of thickness.
Do you need to heat treat D2 steel?
D2 should always be annealed after forging. Heat slowly to 1550°-1600°F, hold until entire mass is heated through, and cool slowly in the furnace (40°F per hour) to about 1000°F, after which cooling rate may be increased. Suitable precautions must be taken to prevent excessive carburization or decarburization.
Can you harden D2 steel?
Hardening: D2 tool steel is extremely sensitive to overheating during hardening – do not overheat. Pre heat slowly to 750/780°C and soak. Continue heating to the final hardening temperature of 1000/1030°C and allow the component to equalise.
How do you cold harden steel?
Cold rolling is the most common method of work hardening. This involves the metal being passed through pairs of rollers to reduce its thickness or to make the thickness uniform. As it moves through the rollers and is compressed, the metal grains are deformed.
How long does it take for cryogenic hardening to occur?
Typical cryogenic treatment consists of a slow cool-down of -5 °F per minute (-3°C per minute) from ambient to -320 °F (-196°C), a soak for 24 to 72 hours, and warm up to ambient temperature.
How do you harden D2 tool steel?
A recommended heat treatment would be 1850-1900°F for 30 minutes, plate quench, cryo, and temper 300-500°F. Without cryo the austenitizing temperature should be no higher than 1875°F.
Can you heat treat D2 with a torch?
4:3212:11how to heat treat D2 Steel - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd all of that is reasonably straightforward you heat it up you dunk it in oil and you're done butMoreAnd all of that is reasonably straightforward you heat it up you dunk it in oil and you're done but when it comes to hardening. There's a lot more to it and I'll run through some of it just.
How much does D2 grow in heat treat?
Estimating Size Change During Heat Treat An Uddeholm data sheet shows that when D-2 tool steel, 3.15" x 3.15" x 3.15", is austenitized at 1,870 degrees F for 30 minutes and quenched in a vacuum furnace with 2 bar nitrogen overpressure, it grows in one dimension while shrinking in the other two.
What Rockwell is D2?
55-62 HRCThe D2, is a tool Steel that offer a good toughness and great hardness with a right edge retention, it has a Rockwell hardness range of 55-62 HRC.
What is the hardness of D2 steel?
between 54 – 61 HRCD2 can reach an approximate tempered hardness range between 54 – 61 HRC and features an approximate compressive yield strength of around 275 ksi to around 319 ksi as hardness increases.
Can D2 steel be welded?
Because of its crack sensitive nature elevated caution must be used when welding on D2 steels. If applying D2 filler material (938) on a D2 base material, the unit must first be fully annealed prior to welding and then rehardened after welding.
What is cryogenic treatment for tubes?
Cryogenic treatment is a process of cooling steel alloy down to very low temperatures (−190 °C) to increase its surface hardness to improve its resistance to wear, the practical application being to extend the life of cutting tools, gear teeth, moving engine parts, that kind of thing.
What is Cryo coating?
Cryo Coating is a mod that increases. Cold damage and status chance on Arch-melee weapons by 15% per rank for a maximum of 60% at rank 3.

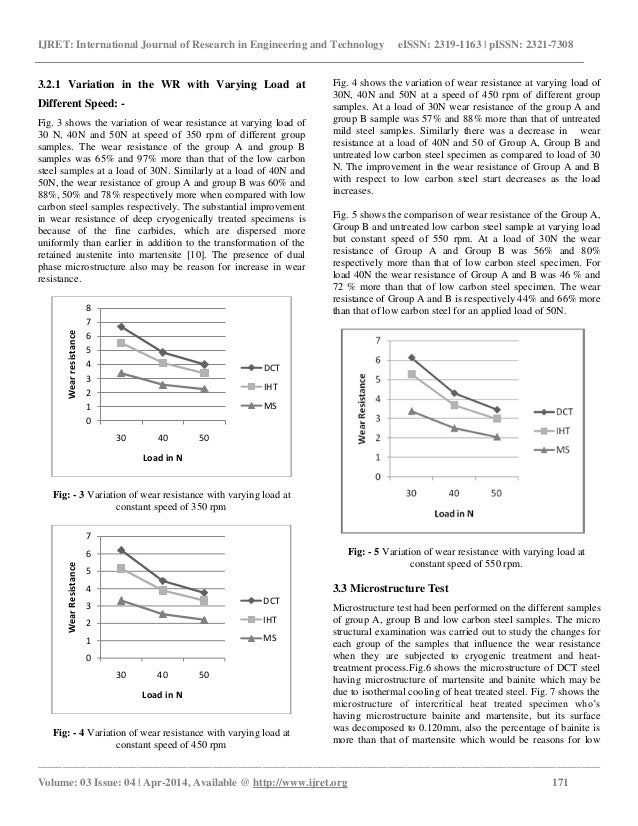

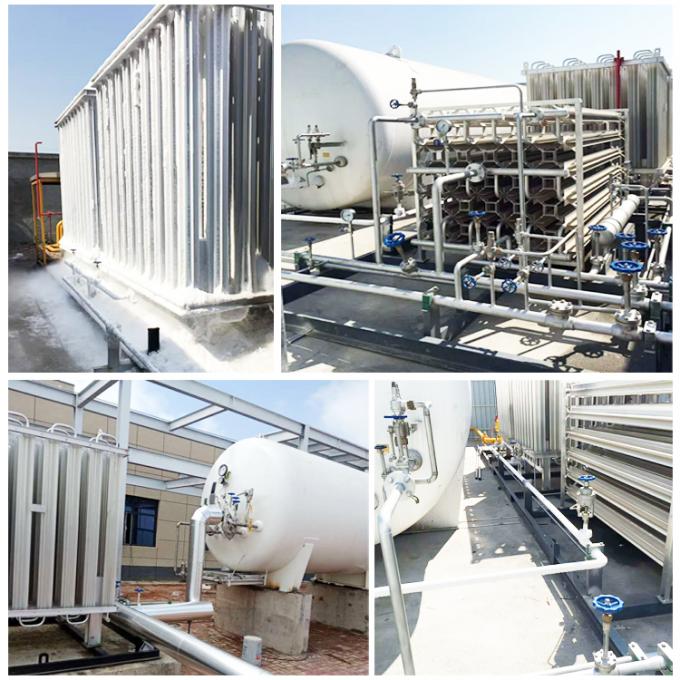

How does a cryogenic oxygen plant work?
Liquid from the tank is compressed to high pressure in a cryogenic liquid pump. It is then vaporised in an ambient air evaporator to produce gaseous oxygen. The high-pressure gas then can pass into cylinders via the gas manifold or fed into a customers product pipeline.
What is cryogenic machining?
Cryogenic machining deals with the direct application of cryogen in the cutting zone to reject heat to reduce tool wear rate and improve surface integrity. Cryo-processing of the tool is a method to improve tool resistance to wear by treating them cryogenically before the machining process.
Abstract
Cryogenic treatment has been recognized by a few methods for expanding apparatus life of numerous cutting instrument materials, hence enhancing efficiency essentially. However genuine components which ensure better instrument execution are as yet questionable.
