Lime slurry also does not dissolve in water, thereby leaving jagged shards in suspension which can cause havoc on pipes and pumps. Lime also has a nasty habit of scaling or forming into hard crusts around crevices or the interior walls of pipes.
What is lime slurry used for in wastewater treatment?
Lime Slurry and pH Control Lime is used in many wastewater treatment plants, where it is added to the influent to maintain a optimum pH level. Lime is normally stored as a dry powder and mixed with water or additional chemicals to create a lime slurry that can be pumped through pipes and added to the waste stream as needed.
What are the disadvantages of lime slurry?
Lime slurry is slightly abrasive, but can be quite corrosive depending upon the other chemicals involved. Lime also has a tendency to build up as scale inside pipes and valves.
What happens to lime sludge from water treatment plants?
The lime is then wasted to storage lagoons or tanks. Burch Hydro removes the lime sludge from these storage areas and provides it to local farmers as an effective and economical pH adjuster for crop ground. Lime sludge from water treatment plants is as effective as agricultural lime in its ability to neutralize soil acidity.
What precautions should be taken when using lime slurry?
Therefore, lime slurry calls for compliance with special precautions in connection with the construction and operation of preparation and dispensing units. E.g.: using clean water to flush through after each shutdown.
Is lime good for water treatment?

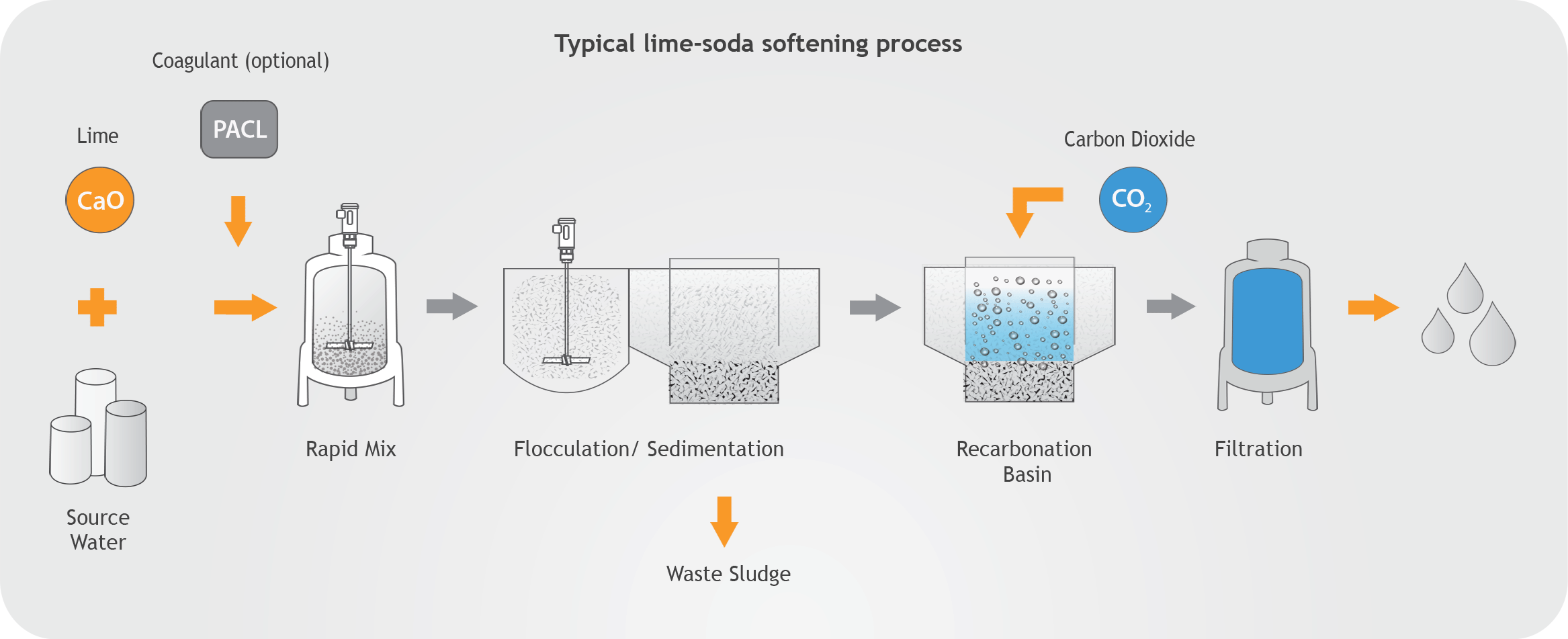

Lime softening is a water treatment process that uses calcium hydroxide, or limewater, to soften water by removing calcium and magnesium ions. In this process, hydrated lime is added to the water to raise its pH level and precipitate the ions that cause hardness.
Is lime slurry hazardous?
Signal Word(s): Danger Page 2 Lime Slurry – February 2, 2018 Hazard Statements: Causes serious eye damage. Causes skin irritation. May cause respiratory irritation. Causes damage to lungs through prolonged or repeated exposure when inhaled.
What is lime slurry used for?
Lime slurry is a free-flowing product that is used for a variety of industrial, municipal and environmental applications. The product is also used extensively for the stabilization of expansive clay soils. Industrial Lime Slurry — Used for municipal water treatment, Ph adjustment, metals precipitation and odor control.
Why is lime added to sludge?
Lime is one of the commonly used additives in the sewage sludge treatment at WWTPs, primarily to stabilize the sludge, especially in cases when sludge is landfilled.
Is lime a carcinogen?
Hydrated Lime is not listed by MSHA, OSHA, or IARC as a carcinogen, but this product may contain trace amounts of crystalline silica, which has been classified by IARC as carcinogenic to humans when inhaled in the form of quartz or crystobalite.
What is the pH of hydrated lime?
12.4Hydrated lime, though only slightly soluble in water, forms suspensions easily; the resulting solution and suspension is strongly alkaline, possessing a pH of 12.4.
What is lime dosing in water treatment?
a maximum dose (MD) of hydrated lime per litre of water, which is taken as 32 mg/L. 3. a safety factor (SF) of 10, which reflects the view that no more than 10 percent of a MAV should be contributed by a given impurity in a water supply chemical.
What concentration does lime slurry stay in solution?
Lime is only sparingly soluble and it is normal to prepare a slurry at concentrations between 5% w/v and 10% w/v, although lower concentrations may be used on smaller treatment works.
How do you mix lime slurry?
3:004:39How to Make a Hydrated Lime Slurry - YouTubeYouTubeStart of suggested clipEnd of suggested clipStep 1 add pre-measured amount of water to the large bucket. Step 2 slowly add the pre measuredMoreStep 1 add pre-measured amount of water to the large bucket. Step 2 slowly add the pre measured amount of lime to the water while mixing it with a mixing paddle.
What is the viscosity of lime slurry?
45-700 centipoisesVariations of viscosity of hydrated lime slurry have been reported between ranges of 45-700 centipoises.
What is lime stabilization in wastewater treatment?
To meet Class B pathogen destruction requirements, lime stabilization is one of five approved processes to significantly reduce pathogens. Specifically, lime is added to raise the pH of the biosolids to 12 for 2 hours. The pH is subsequently maintained at more than 11.5 for 22 hours.
Why is lime used on sewage spills?
D. If the spill occurred in a heavily populated area and odor may be an issue or i s within 100 feet of surface water, hydrated lime should be applied to the spill area in place of chlorine bleach. The hydrated lime will raise the pH to 12, which will disinfect the area.
Why is lime used in water treatment?
In some water-treatment plants, alum sludge is treated with lime to facilitate sludge thickening on pressure filters.
How does lime help with water?
Lime is also used to combat "red water" by neutralizing the acid water, thereby reducing corrosion of pipes and mains from acid waters. The corrosive waters contain excessive amounts of carbon dioxide. Lime precipitates the CO 2 to form calcium carbonate, which provides a protective coating on the inside of water mains.
What is the process of removing carbonate from water?
Softening - In water softening, hydrated lime is used to remove carbonate "hardness" from the water. Hardness caused by other calcium and magnesium salts, called noncarbonate hardness, is generally treated by means of the lime-soda process, which entails the precipitation of magnesium by lime.
What is lime used for?
Lime is used by many municipalities to improve water quality, especially for water softening and arsenic removal.
What is the best way to remove silica from water?
Removal of Impurities - One of the most common methods of removing silica from water involves the use of dolomitic lime . The magnesium component of this lime is the active constituent in silica removal. Lime is also used to remove manganese, fluoride, organic tannins and iron from water supplies.
How does lime affect pathogens?
Effect on Pathogen Growth - By raising the pH of water to 10.5-11 through the addition of lime and retaining the water in contact with lime for 24-72 hours, lime controls the environment required for the growth of bacteria and certain viruses.
Why is lime used in phenolic water?
This application of lime is utilized where "phenolic water" exists, because chlorine treatment tends to produce unpalatable water due to the presence of phenol. This process, called 'excess alkalinity treatment', also removes most heavy metals.
How to store lime powder?
storing lime powder. Powdered lime is stored in 25 kg bags or in a silo, depending on the size of the installation. In France, the preferred minimum silo capacity is 50 m³, this being the maximum lorry payload (25 tonnes). The base of the silos is equipped with a flow assister.
What is slaked lime?
Slaked lime is usually used as a lime slurry, an aqueous suspension of calcium hydroxide particles. Its concentration is usually between 50 and 100 g.L -1 for ease of use; in effect:
What is lime used for?
Lime is the most widely used reagent in water treatment applications. It is supplied in two forms: slaked (or hydrated) lime: Ca (OH) 2. Warning: in both cases, these reagents will contain between 4 and 20% of solid impurities (CaCO 3, SiO 2 …). These impurities must be removed before the product is used.
What is lime slurry used for?
Lime Slurry used to adjust pH-value. Water suppliers must treat the drinking water before it is sent to the customer. The water should be clean, free of microbiological contamination. The pH-value has to be in the range of 7.0 to 8.5, as required be the authorities.
What are the disadvantages of limestone slurry?
The disadvantage of limestone slurry, it is very abrasive and viscose. Often hoses are used rather than pipes as they are easier to exchange when blocked. If the slurry comes to a standstill, the calcium hydroxide starts to sediment. Forming calcium deposits.
Is drinking water sour or alkaline?
Drinking water should have a chemical balance and be neither too sour nor too alkaline. Depending on the raw water, one process step is to stabilize the pH-value. For this purpose lime slurry is used. Lime slurry is a suspension of calcium hydroxide in water.
Why does lime break?
Broken stems are the most common result. Because the shape of the elastomer sleeve changes as it opens and closes, it breaks up solidified lime and allowing it to pass. There are also no cavities or dead spaces in which lime can accumulate.
What is lime used for?
Lime is used in many wastewater treatment plants, where it is added to the influent to maintain a optimum pH level. Lime is normally stored as a dry powder and mixed with water or additional chemicals to create a lime slurry that can be pumped through pipes and added to the waste stream as needed. Lime slurry is slightly abrasive, ...
What happens to a lime valve when it is shut off?
The upstream pressure in the line ahead of the valve will force liquid out of the lime, leaving a dry plug behind.
Is lime slurry corrosive?
Lime slurry is slightly abrasive, but can be quite corrosive depending upon the other chemicals involved. Lime also has a tendency to build up as scale inside pipes and valves. This scaling can severely inhibit the operation of traditional quarter turn valves and restrict flow.
Why is lime used in water treatment?
Lime is often used to adjust the pH of water after it has undergone treatment at a water plant. The lime is then wasted to storage lagoons or tanks. Burch Hydro removes the lime sludge from these storage areas and provides it to local farmers as an effective and economical pH adjuster for crop ground.
Can water plants be used for lime sludge?
Water plants with limited storage capacity for lime sludge can rely on agricultural land application as a cost effective and sustainable solution. The cost to the plant for removal and land application is typically much less than the cost of other disposal methods, particularly landfill disposal. Most municipalities benefit from ...
Is lime sludge good for pH?
Powerful pH Adjuster. Lime sludge from water treatment plants is as effective as agricultural lime in its ability to neutralize soil acidity.
