Because cryogenics cuts down on the need to handle and change machinery components, it reduces the opportunities for injury. Tool steels, titanium, hard chrome, carbide, stellite, nylons (including PA66 and Delrin), copper, brass, aluminum, cast steel, powder metals, and many more materials respond well to cryogenic processing.
Full Answer
Can plastic materials be used in cryogenic applications?
THE USE OF PLASTIC MATERIALS IN CRYOGENIC ENVIRONMENTS Curbell Plastics, Inc. Dr. Keith Hechtel, DBA – Author Plastics offer a number of benefits for cryogenic applications including low thermal conductivity, electrical insulating properties, sealing performance, and
What are some examples of cryogenically cooled devices?
Today, a wide variety of emerging technologies require devices capable of performing at cryogenic temperatures. These include liquid hydrogen storage and processing equipment, spacecraft hardware, particle accelerators, cryogenically cooled supercomputers, freezers for pharmaceutical and biosciences applications, and superconducting magnets.
What happens when PTFE is cooled to cryogenic temperatures?
Figures 2 and 3show increases in the tensile strength and hardness of PTFE as it is cooled to cryogenic temperatures. Figure 2further demonstrates the influence of crystallinity on the
Is it safe to move someone with a cryogenic injury?
Any person suffering from cryogenic or cold related injuries should be moved to a safe location only when this can be accomplished without endangering other people. Evaporating liquid hydrogen creates hydrogen gas with a high likelihood of a flammable or explosive mixture arising.

What does cryogenic treatment do for metal?
Cryogenic hardening is able to make metal objects and workpieces more resistance to wear and tear. Metal doesn't just become harder through cryogenic hardening; it becomes tougher and more resistant to wear. As a result, cryogenic hardening is performed to increase the usable life of metal objects and workpieces.
What does cryogenic treatment do?
Cryotherapy, or cryogenic therapy, is any form of treatment using freezing or near-freezing temperatures. This can include cryosurgery, or cryoablation, where liquid nitrogen is applied locally to destroy abnormal cells (such as tumors or cancerous cells).
How does a cryogenic process work?

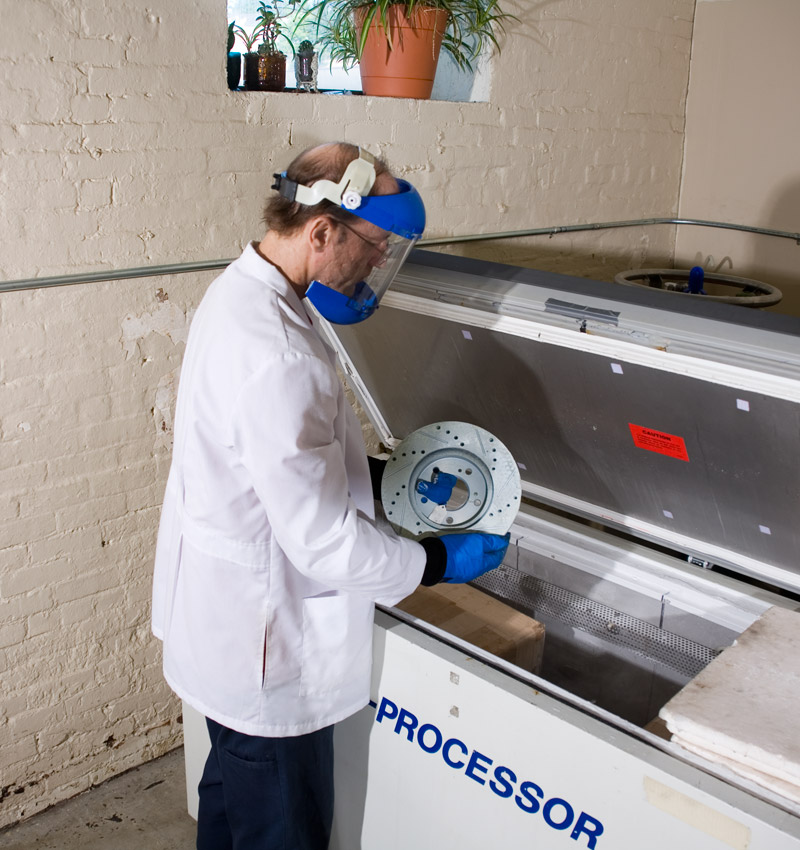

Cryogenic processing is performed by slowly cooling parts in a controlled bath of liquid nitrogen or a freezer, holding the parts until equilibrium is reached with the liquid's temperature. Nitrogen is a liquid at -320℉. Cryogenically processed parts are generally held for one hour per inch of thickness.
How long does it take for cryogenic hardening to occur?
Typical cryogenic treatment consists of a slow cool-down of -5 °F per minute (-3°C per minute) from ambient to -320 °F (-196°C), a soak for 24 to 72 hours, and warm up to ambient temperature.
Can liquid nitrogen damage metal?
Yes. Cooling just about anything to liquid nitrogen temperatures makes it more brittle than at higher temperatures. At higher temperatures, defects in the crystal lattice of a material are more mobile. Bending a crystal will introduce slippage and cracking.
Can liquid nitrogen freeze metal?
7:038:35Punching a Hole Through Solid Steel Frozen With Liquid NitrogenYouTubeStart of suggested clipEnd of suggested clipEither so it completely depends on your steel alloy. And it depends on your type of metal allMoreEither so it completely depends on your steel alloy. And it depends on your type of metal all together whether you're using steel or not in general if your metal is pretty ductile at room temperature
What are cryogenic materials?
A Cryogenic material is a material at a very low (or “cryogenic”) temperature. This includes liquids and solids such as cardice. Cryogenic Liquids are gases at normal temperature and pressure that are liquefied at very low temperatures. Examples include nitrogen, argon and helium.
What is cryogenic treatment of alloys?
A cryogenic treatment is the process of treating workpieces to cryogenic temperatures (i.e. below −190 °C (−310 °F)) in order to remove residual stresses and improve wear resistance in steels and other metal alloys, such as aluminum.
How are cryogenic temperatures reached?
There are essentially only four physical processes that are used to produce cryogenic temperatures and cryogenic environments: heat conduction, evaporative cooling, cooling by rapid expansion (the Joule-Thompson effect), and adiabatic demagnetization. The first two are well known in terms of everyday experience.
How cold is cryogenic treatment?
Places that offer cryotherapy have special tanks or chambers that are cooled to extremely low temperatures. They may be as cold as –200 to –300 degrees Fahrenheit.
Can you quench steel in liquid nitrogen?
A cryo treatment such as with liquid nitrogen (-310°F) reduced the retained austenite from 20% down to 8% when placing it in liquid nitrogen directly after quenching. This degree of transformation was basically the same even after holding the steel at room temperature for an hour prior to cryo.
What is cryo treatment for knives?
Cryogenic treatment is a common process designed to enhance the performance of metal blades. Extreme deep freezing increases the service life of knives by improving their resistance to wear. As a one-time treatment, freezing knife blades makes them more durable and less prone to chipping and fracturing under stress.
How to use cryogens indoors?
When using cryogens indoors make sure the room is well ventilated and you have the cryogen stored in proper containment systems. If cryogens are used in enclosed or poorly ventilated work areas (or confined spaces) special procedures may be needed. Do not enter confined spaces. Contact EH&S for evaluation of ventilation or for development of special handling protocols. Areas suspected of being oxygen deficient due to the release of large quantities of cryogenic vapors shall be evacuated immediately. Never vent a cryogenic dewar or system toward yourself or others. The vapor will quickly displace the oxygen, causing an oxygen deficient atmosphere.
What is cryogenics in science?
Cryogenics is the study and use of materials at ultra low temperatures (less than -150°C), and includes chemicals which are normally gases at room temperature. In many FSU labs, cryogenic use involves small amounts of material (a few liters of liquid nitrogen or a few pounds of dry ice). Some laboratories use liquid oxygen, hydrogen or helium whether in small quantities or in bulk.
What is a cryogen storage container?
Cryogens are stored or transported in dewars, which are insulated containers specifically made for storage of extremely cold materials. Dewars are designed to protect workers from contacting cryogenic fluids or vapors and maintain the cryogen in its liquid state.
What happens when cryogenic gases are released?
Rapid expansion may create extreme pressure buildup in a capped vessel, which may result in vessel rupture or failure. Sudden release into the environment will displace oxygen and may create a life-threatening situation. The cold cryogenic gas condensing moisture in the air causes the visible fog that appears when cryogen is released to atmosphere. The fog is a visible indicator of cryogenic release. Users shall stay clear of this area.
What are the risks of cryogenic liquids?
In addition to the hazard of extreme cold, the hazards associated with the chemical pose a risk: reactivity, corrosivity, toxicity, asphyxiation, and vigorous flammability.
Why is it important to use caution when approaching someone injured or unconscious near a cryogenic system?
It is extremely important to use caution when approaching someone injured or unconscious near a cryogenic system. If the system is leaking, there could be an oxygen deficient atmosphere around the injured person, which would make it dangerous for others to get close. Entering the oxygen deficient atmosphere could cause the rescuer to become unconscious as well.
Is liquid nitrogen flammable?
Nitrogen is not flammable, however when liquid nitrogen is released, air around the cryogen may condense when allowed to stand in an open container, which may create an oxygen rich atmosphere that is combustible. The resulting liquid mixture should be handled as though it is as hazardous as pure liquid oxygen. If liquid oxygen or oxygen contaminated liquid nitrogen were spilled on combustible materials (cloth, wood, cardboard), the oxygen (now a gas) can remain close to the solid surface for several hours, and can explode if an ignition source is provided.
What to wear for a chemical lab?
Wear chemical resistant lab coat, long pants, and closed-toe shoes. These laboratory coats must be appropriately sized for the individual and be buttoned to their full length. Laboratory coat sleeves must be of a sufficient length to prevent skin exposure while wearing gloves.
Where to store liquid nitrogen?
Store and transport liquid nitrogen only in Dewars or cryogenic liquid cylinders designed for cryogen. Cryogenic liquid Dewars have to be stored in well-ventilated areas with the pressure relief valve in the opened position.
Do you need to be pre-approved for cryogenic materials?
All work with cryogenic materials must be pre-approved by the Principal Investigator prior to use and all training must be well documented. In addition, the following shall be completed:
Is liquid nitrogen toxic?
Use liquid nitrogen only in well-ventilated areas. Even though nitrogen isn’t toxic, but there is a danger of asphyxiation from unconsciousness, which occurs in a room if too much oxygen is displaced by nitrogen gas. Nitrogen expands its volume by a factor of ~700 when evaporated.
Can a cryogenic liquid be closed?
Cylinder for cryogenic liquids must not be closed completely. Even though liquid nitrogen is stored in vacuum-jacketed vessels (dewars), there is always some heat leak into the dewar such that there is boil-off of the liquid at all times. Pressure will build up if no exit is available to the gas, and then the container would ultimately explode. A pressure relief valve is attached to the cylinder to keep the internal pressure very low. Make sure you are aware of the presence of a protective pressure relief valve on any cylinder that you handle.
