The purpose of screening in wastewater treatment is to:
- protect the equipment downstream from clogging and damage;
- remove large debris that can adversely affect the efficiency of treatment processes;
- shield final discharge waterway from contamination.
What is water treatment process (screening)?
Water Treatment Process (Screening) WATER TREATMENT PROCESS Water treatment is the process of removing pollutants from raw water to produce safe water for human use in chemical and bacteria. Water should also be aesthetically acceptable, free from turbidity, smell and unpleasant color.
What is the purpose of wastewater screening?
Wastewater Screening is the first unit operation in all wastewater treatment plants. Screen is the device used to retain solids found in the influent wastewater to the treatment plant. The main purpose of screening is to remove solid materials that could: Cause damage to other process equipment. Cause reduction in efficiency of the whole system.
What is a fine screen in water treatment?
The screening process in water treatment plants employs screens that have clear openings less than 6mm called fine screens. They are made of wire cloth, wedge wire or perforated plates. Like micro screens, they are tools for screening in wastewater treatment that are used to remove fine solids.
What are the different types of screening in wastewater treatment?
Continuous belt screen: Ultra-high tech, functional and efficient, this type of screening has many rakes and is continuous and self-cleaning, whether facing fine or coarse solid loads. The smallest type of screening in wastewater treatment is micro screening.
What is screening in filtration?
A screen filter is a type of [filtration of water] using a rigid or flexible screen to separate sand and other fine particles out of water for irrigation or industrial applications.
What is screening and straining of water?
Screens or sieves are great for straining larger particles out of water and are a simple, but flexible technology for diverse configurations. These work well applied at (inlet of) central treatment facilities, but simple use makes it suitable for decentralized or rural applications.
What are the types of screens used in wastewater treatment?
Three common types of fine screening in wastewater treatment are:Drum Screens (rotating cylinders in the flow channel)Step Screens (fixed and movable plates across the width of the channel)and Static Wedge Wire Screens (used by large treatment plants with ample floor space)
What are the functions of screen in wastewater treatment?
Answer : (1) In a wastewater treatment plant, a bar screen removes large solid objects from the water. (2) The wastewater is allowed to pass through bar screen so that large solid objects such as rags, napkins, sticks, cans, plastic bags, polythene, etc. present in wastewater can be removed.
What are the types of screening?
There now appear to be four main aims of screening, although seven terms are used to describe them: case-finding, mass screening, multiphasic screening, opportunistic screening, periodical health examination, prescriptive screening, and targeted screening.
What is fine screening?
Fine screening is the second mechanical pre-treatment process allowing finer separation than coarse screens of the solid waste contained in the raw water. Filtration is carried out by a 6 mm to 0.25 mm opening using perforated sheet or wedge wire mesh (also called johnson mesh).
How many types of screens are present?
Explanation: Screens can be broadly classified into two types depending upon the opening size provided as coarse screen (bar screens) and fine screens. There are manually cleaned screens and mechanically cleaned screens based on the cleaning operation.
What is screening of solid waste?
Wastewater Screening is the first unit operation in all wastewater treatment plants. Screen is the device used to retain solids found in the influent wastewater to the treatment plant. The main purpose of screening is to remove solid materials that could: Cause damage to other process equipment.
What is the size of the screen used in treatment of water?
What is the size of the coarse screen used in pretreatment of water? Explanation: Coarse screens are used in the form of bars of 25mm diameter size and are spaced at 75 to 100mm centers. 3.

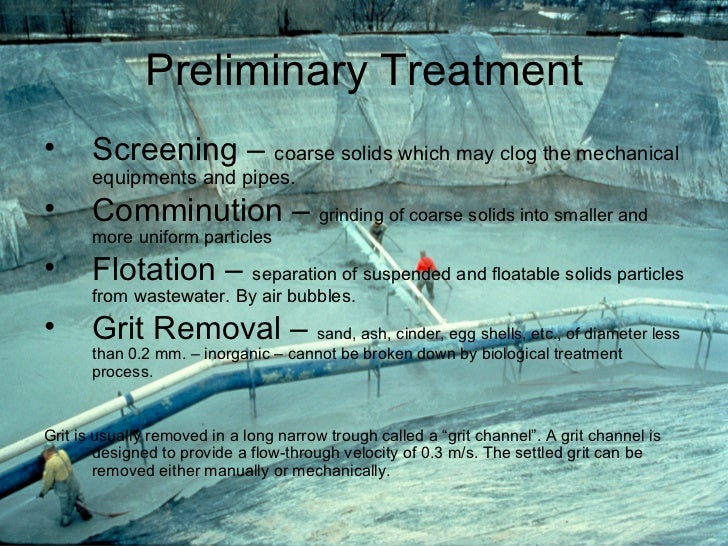

What is the purpose of screening and grit removal?
By letting the wastewater flow slowly through a grit channel or Detroiter the grit will settle while the lighter organic material will carry on. The incoming wastewater passes through a series of screens to remove any rags, paper, wood or rubbish that might otherwise clog up the system.
What is the function of screen chamber?
The bar screen chamber is used to separate plastics and other non-decomposable matter from incoming waste water to prevent clogging of pipelines and pumps thereby causing break-downs. The bar screen chamber consists of two screens i.e., a coarse screen followed by a fine screen which are inverted at an inclined angle.
What is meant by bar screen?
Definition of bar screen : a screen or sieve with parallel uniformly spaced bars instead of wire mesh — see grizzly.
Why is wastewater screening important?
A necessary part of all municipal and industrial wastewater treatment plants, wastewater screening retains solids found in the wastewater. These solids must be removed at the very beginning of the water treatment process, as these solids could make the whole system less efficient, damage expensive and essential water treatment equipment or contaminate water, causing small to large scale natural upsets for a region’s entire ecosystem.
What are the different types of wastewater screening?
There are three broad categories in which you can classify wastewater treatment screens – coarse, fine and micro . Within these categories are many different varieties of screening. The screens are classified based on the size of the screening openings, as well as other mechanical traits.
What are micro screens made of?
They are made of wire cloth, wedge wire or perforated plates. Like micro screens, they are tools for screening in wastewater treatment that are used to remove fine solids. Three common types of fine screening in wastewater treatment are:
What is the smallest type of screening?
The smallest type of screening in wastewater treatment is micro screening. These screens are typically low-speed drum screens. The drums are lined with filtering fabrics with openings of 10 to 35µm. Wastewater enters the drum, and the retained solid waste is collected and disposed of.
What is a hand raked screen?
Used in the screening process in wastewater treatment at small facilities, hand cleaned coarse screens are hand raked. They are ideal to use as a standby during periods of high flow, or when more modern mechanical screening methods are under repair or maintenance.
Screening in Waste Water Plant
Located at the intakes from river, lakes & reservoirs for water treatment plant or at wet well into which main trunk sewer discharge for waste water treatment plant. They are also located before the pumps in storm water & waste water pumping plant. In case of industrial waste water treatment there is usually no need of such equipment.
Screening Devices
Screening devices are the 1 st unit operation in treatment plant of water & wastewater to control the large size particle entry into the system. It consists of parallel bars, rods or wire, grating, wire mesh or perforated plate, having opening of any shape but circular & rectangular are common.
Coarse Screen
Are classified as either bar racks (trash racks) or bar screen. It consists of parallel bars or rods of steel or stainless steel. It can be used to entrap the coarse materials to protect the damaging of pumping units. The normal sizes of 15 mm to 38 mm opening with bar spacing of 50 to 150 mm. Bar racks are used as pre-treatment applications.
What is the purpose of wastewater screening?
The main purpose of screening is to remove solid materials that could :
What is a fine screen?
They consisted of perforated plates, wire cloth, wedge wire elements that have smaller openings. They are also used to remove the fine solids present in the primary effluent. Fine screens are classified as:
How does a movable screen work?
The fixed and movable step plates alternate across the width of channel and together form a single screen face. The movable plate rotates in a vertical motion. Through this the solids collected on the screen face is lifted up to the next fixed step landing and transported to the top of the screen to discharge into outlet.
What is a catenary screen?
Catenary screen: They have the rake which is held against the rack by the weight of chain. They are front cleaned, front return chain driven screen. If heavy objects become jammed in between the bars, the rakes will pass over them instead of further jamming in it.
Why should a bar screen channel be perpendicular to the bar screen?
The channel should have a straight approach which should be perpendicular to the bar screen to promote uniform distribution of the solids throughout the flow and on the screen.
What is a coarse screen?
1. Coarse Screen. It is meant to protect pumps, valves, pipe lines, impellers and other related equipment. It is installed at the intake of waste water before pumping, primary settling or grit chamber and is made up of a grid of rods or bars.
Why use a strainer in a wastewater treatment plant?
In waste water treatment plants strainers are sometimes used to replace primary settling tanks to save higher construction costs. It can also reduce the burden of suspended solids in consecutive treatment processes. Its largest application is that it can be used as a sole treatment unit (except disinfection) for waters free of color and colloidal turbidity.
What is fine fixed screen?
Fine Fixed screens are suitable when only small amount of materials need to be removed and are often placed just after a bar screen. The openings of these screens range from 1 - 25mm
How is waste water removed from a drum?
The waste water is passed through the inside/hollow portion of the drum . The solid is retained inside the drum and the screenings are removed through gravitational action. Jets of water from outside can also be used to clean the drums through spraying.
What is a bar screen made of?
An adjoining bar screen made up of mild steel is also attached to the flexible woven wire mesh. The movement of these screens is either vertical or horizontal in direction. Jets of water are used from the inside of the screens to remove the debris that has accumulated/clogged on the outer side of the screen.
