What is the process of primary treatment of wastewater?
What is removed during primary wastewater treatment? Primary treatment removes material that will either float or readily settle out by gravity. It includes the physical processes of screening, comminution, grit removal, and sedimentation. Which pollutants are mainly targeted to be removed in the filtration step in wastewater treatment?
What are the different types of wastewater treatment?
Primary treatment removes material that will either float or readily settle out by gravity. It includes the physical processes of screening, comminution, grit removal, and sedimentation. Screens are made of long, closely spaced, narrow metal bars. They block floating debris such as wood, rags, and other bulky objects that could clog pipes or pumps.
How to remove solids from wastewater treatment?
The purpose of primary treatment is to remove solids which are not removed during preliminary treatment. Processes which can be used to provide primary treatment include the following: 1) primary sedimentation, also called clarification; 2) microscreens; and 3) Imhoff tanks. In most facilities, primary treatment is used as a preliminary step ahead of biological treatment. 2. …
What items are involved in the secondary treatment of wastewater?
Dec 06, 2018 · During primary treatment, wastewater is temporarily held in a settling tank where heavier solids sink to the bottom while lighter solids float to the surface. Once settled, these materials are held back while the remaining liquid is discharged or moved through to the more rigorous secondary phase of wastewater treatment.
Which substances are removed during primary wastewater treatment?
The primary treatment generally removes up to 50 percent of the Biological Oxygen Demand (BOD; these are substances that use up the oxygen in the water), around 90 percent of suspended solids, and up to 55 percent of fecal coliforms.Jan 23, 2017
What is removed during secondary wastewater treatment?
During secondary treatment, biological processes are used to remove dissolved and suspended organic matter measured as biochemical oxygen demand (BOD). These processes are performed by microorganisms in a managed aerobic or anaerobic process depending on the treatment technology.
What is removed from wastewater during the first stages of water treatment?
Primary treatment (stage 1) This is when wastewater is temporarily held in large sedimentation tanks to remove settleable solids. With gravity, heavier solids sink to the bottom while lighter solids rise to the top. Chemicals can also be added as coagulants to remove more solids.Mar 7, 2021
What happens during primary treatment of wastewater?
Primary treatment of wastewater involves sedimentation of solid waste within the water. This is done after filtering out larger contaminants within the water. Wastewater is passed through several tanks and filters that separate water from contaminants.Jun 27, 2017
What is removed from wastewater?
screening and grit removal to remove large particles. sedimentation allows tiny particles to settle out from still water, which produces sewage sludge and effluent (the liquid which remains on top) the sewage sludge is digested anaerobically by specific bacteria.
What is primary and secondary wastewater treatment?
The main difference is the way each respective treatment is processed. Primary treatment works on sedimentation, where solids separate from the water through several different tanks. In contrast, secondary treatment uses aeration, biofiltration and the interaction of waste throughout its process.Nov 19, 2020

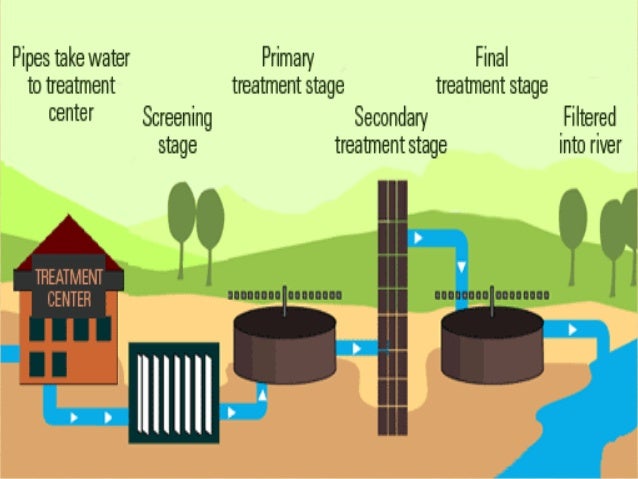

What are the 3 stages of wastewater treatment?
There are three main stages of the wastewater treatment process, aptly known as primary, secondary and tertiary water treatment.Dec 6, 2018
What are the 5 stages of wastewater treatment?
Treatment StepsStep 1: Screening and Pumping. ... Step 2: Grit Removal. ... Step 3: Primary Settling. ... Step 4: Aeration / Activated Sludge. ... Step 5: Secondary Settling. ... Step 8: Oxygen Uptake. ... Sludge Treatment.
What are the 3 steps to wastewater treatment?
The 3 Stages Of Wastewater TreatmentPrimary Treatment. Before wastewater even gets to primary treatment, it is funneled through collection systems and treated with odor-neutralizing chemicals. ... Secondary Treatment. In secondary treatment, the goal is to break down wastewater even further. ... Tertiary Treatment.Dec 20, 2018
What is grit removal?
Grit removal is the process used to remove sand, silt and grit from water. Grit (and sand) removal is often found in the headworks of wastewater treatment plants (WWTP).
What is the percentage of BOD removed in primary treatment?
Primary treatment typically removes about one-third of the BOD and one-half of the suspended solids in domestic wastewaters. Combined primary and secondary treatment is required to achieve 85 percent reduction in both BOD and suspended solids concentration to meet the regulatory definition of secondary treatment.
Which of the following impurities are removed by primary sedimentation tank?
(i) In Primary treatment First, floating debris of waste is removed by sequence filters. (ii) The Soil and small pebbles are removed by sedimentation in settling tanks. (iii)The sediment is called primary sludge and supernatant is effluent.
How does removal of impurities work?
Removal is usually accomplished by biological processes in which microbes consume the organic impurities as food, converting them into carbon dioxide, water, and energy for their own growth and reproduction.
What is the purpose of sewage treatment plant?
The sewage treatment plant provides a suitable environment , albeit of steel and concrete , for this natural biological process. Removal of soluble organic matter at the treatment plant helps to protect the dissolved oxygen balance of a receiving stream, river, or lake.
What is a trickling filter?
A trickling filter is simply a tank filled with a deep bed of stones. Settled sewage is sprayed continuously over the top of the stones and trickles to the bottom, where it is collected for further treatment. As the wastewater trickles down, bacteria gather and multiply on the stones. The steady flow of sewage over these growths allows the microbes to absorb the dissolved organics, thus lowering the biochemical oxygen demand (BOD) of the sewage. Air circulating upward through the spaces among the stones provides sufficient oxygen for the metabolic processes.
How long does it take for a primary clarifier to settle?
These tanks, also called primary clarifiers, provide about two hours of detention time for gravity settling to take place. As the sewage flows through them slowly, the solids gradually sink to the bottom. The settled solids—known as raw or primary sludge —are moved along the tank bottom by mechanical scrapers.
How much of the secondary sludge must be treated?
The recycled microbes are well acclimated to the sewage environment and readily metabolize the organic materials in the primary effluent. The remaining 70 percent of the secondary sludge must be treated and disposed of in an acceptable manner ( see Sludge treatment and disposal ).
How long does activated sludge stay in the aerator tank?
Under such oxygenated conditions, microorganisms thrive, forming an active, healthy suspension of biological solids—mostly bacteria —called activated sludge. About six hours of detention is provided in the aeration tank. This gives the microbes enough time to absorb dissolved organics from the sewage, reducing the BOD.
What is the purpose of a secondary clarifier?
Air circulating upward through the spaces among the stones provides sufficient oxygen for the metabolic processes. Settling tanks, called secondary clarifiers, follow the trickling filters. These clarifiers remove microbes that are washed off the rocks by the flow of wastewater.

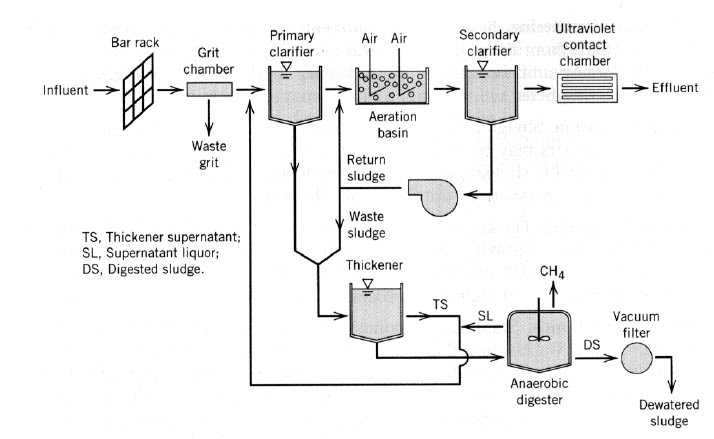

What happens to wastewater as it enters the plant?
The first thing to happen to wastewater as it enters the plant is for it to pass through bar screens (or bar racks). These remove objects in the wastewater that are large enough to be caught in a series of screens. There are three different types of screens that may be used, trash racks, manually cleaned racks, and mechanically cleaned racks .
What is primary treatment?
The first step in modern wastewater treatment, primary treatment removes solids that are suspended in the wastewater. First the waste is screened to remove larger objects, then grit is removed, and finally the rest of the solids are extracted using gravity in large sedimentation tanks. A basic illustration of Primary Treatment, ...
What happens to sludge in a tank?
Sludge collects on the bottom and is scraped and pumped out of the tank, oils and grease end up floating on top of the water (having a lower density). The sludge, oils and grease and then sent for undergo secondary wastewater treatment. The clarified water that is left goes on to tertiary wastewater treatment.
What are the different types of screens?
There are three different types of screens that may be used, trash racks, manually cleaned racks, and mechanically cleaned racks . Trash racks have the largest openings, 40 to 150 mm, and are used to remove the largest objects from entering the plant. Manually cleaned racks have smaller openings, 25 to 50 mm, and are not often used, ...
How to remove grit from water?
There are several methods to remove grit, though the most common is to send it through a channel where the speed of the water is such that the grit settles and can be removed, while the the rest of the water can flow on to further treatment .
What is grit removal?
Grit removal. Grit is the term used for small, but dense material such as sand, dirt, or broken glass. If not removed separately grit can cause wear and damage to mechanical devices in a treatment plant.
How big is a square tank?
Square tanks size varies from 15 to 100 meters in length and 3 to 24 meters in width, and are favored by those with space constraints.
What is the process of removing sediment from a wastewater system?
1. Biofiltration. Bio filtration uses sand filters, contact filters or trickling filters to ensure that any additional sediment is removed from the wastewater. 2. Aeration. Aeration is a lengthy process which increases oxygen saturation by introducing air to wastewater.
What are the stages of wastewater treatment?
What Are the Three Stages of Wastewater Treatment? There are three main stages of the wastewater treatment process, aptly known as primary, secondary and tertiary water treatment. In some applications, more advanced treatment is required, known as quaternary water treatment.
Where is wastewater held?
During primary treatment, wastewater is temporarily held in a settling tank where heavier solids sink to the bottom while lighter solids float to the surface. Once settled, these materials are held back while the remaining liquid is discharged or moved through to the more rigorous secondary phase of wastewater treatment.
What is tertiary treatment?
In the case of water treated by municipalities, tertiary treatment also involves the removal of pathogens, which ensures that water is safe for drinking purposes.
What is primary treatment of wastewater?
Primary treatment of wastewater involves sedimentation of solid waste within the water. This is done after filtering out larger contaminants within the water. Wastewater is passed through several tanks and filters that separate water from contaminants.
What is the most effective method of secondary treatment of wastewater?
This method of secondary treatment of wastewater employs sand filters, contact filters, or trickling filters to ensure that additional sediment is removed from wastewater. Of the three filters, trickling filters are typically the most effective for small-batch wastewater treatment.
What is the third step in wastewater management?
This third and last step in the basic wastewater management system is mostly comprised of removing phosphates and nitrates from the water supply. Substances like activates carbon and sand are among the most commonly used materials that assist in this process.
How long does it take for a wastewater solution to be aerated?
The resulting mixture is then aerated for up to 30 hours at a time to ensure results.
What is the last treatment before the wastewater enters the receiving stream?
Once the Phosphorous and Nitrates are eliminated then the effluent is sent out to a Chlorine Contact Tank for disinfection. UV or Chlorine can be used for Disinfection and Dissolved oxygen is added as the last treatment before the Wastewater which is now considered Treated Effluent enters the receiving stream.
What is the main objective of wastewater treatment?
The main objective of Wastewater Treatment is to separate solids from liquid then to treat both turning the solids into nonhazardous Bio-solids and water into non-threatening environmentally safe water to add back to the environment where it came from with the intention of using it again. 1. Primary Wastewater Treatment.
What is stage 2 of wastewater treatment?
Stage 2. – Includes Secondary Treatment using different methods of Biological Oxidation to further purify wastewater. The Conventional Activated Sludge Process is the most popular, using Aeration in a long, but effective process that entails mixing and aerating wastewater in a solution of microorganisms grown in the system that breakdown organic material and separates dissolved solids. This can be accomplished by:
What is anaerobic digestion?
Anaerobic Digestors. Most large Wastewater Treatment Plants use 2 Stage Anaerobic Digestion to treat the solids removed from the Primary and Secondary Treatment facilities. Treatment is needed for the Solids to be deemed safe for landfills.
What is slurry residual material?
These are the Solids that are removed in the primary treatment and secondary systems. Sewage sludge, semisolid, or slurry residual material that is produced as a by-product of the wastewater treatment processes, still needs more treatment and is considered volatile. Anaerobic Digestors.
How much BOD is removed from sewage?
Weekly averages may be up to 50 percent higher. A sewage treatment plant providing both primary and secondary treatment is expected to remove at least 85 percent of the BOD and suspended solids from domestic sewage.
What is the most standard secondary treatment?
The most Standard secondary treatment techniques that are used mostly in North America today, are the Conventional Activated Sludge Process. After effluent leaves the sedimentation tank in the primary stage it flows or is pumped to a Secondary treatment using one or the other of these processes.
What is primary wastewater treatment?
The primary wastewater process utilizes equipment to break up larger particles and then uses sedimentation or a floating process for extraction. Many treatments that use the primary method then proceed to the secondary treatment process.
How is wastewater treated?
The primary treatment of wastewater occurs through sedimentation with filtering out large contaminant particles within the liquid. The contaminants separate as they are passed through several tanks and other filters. Leftover sludge filters through a digester to suspend solids from the wastewater.
How to get rid of sediment in sewage?
The first is biofiltration that uses filters with sand, contact filters or trickling filters that remove sediment from the sewage. Aeration is the next step. It mixes the wastewater with a microorganism solution. Then, this treatment uses an oxidation pond to pass the wastewater through a body for up to two or three weeks.
What is the process of removing impurities from water?
The removal in the secondary wastewater treatment process generally occurs through a biological process with consumption of impurities in water by microbes, converting the matter into energy, carbon dioxide gases, and water. AOS can help with municipal wastewater treatment services in both primary and secondary processes.
What is primary treatment?
Through the primary treatment, it is possible to remove materials that float and settle on top of water. Through primary treatment, it is possible to implement screening water treatment, reduce particles to fragments, remove grit and initiate sedimentation. The primary treatment pushes sewage through screens into the comminutor for grip disposal ...
What is the difference between primary and secondary treatment?
The principal difference in primary and secondary treatment is the process that breaks down the sewage in wastewater. In the primary method, the waste processes through a physical procedure with equipment and filtration. While secondary treatment may use similar items, this method uses biological treatment through microbes.
What is the difference between filtration and sedimentation?
Another difference between these processes is how much time they take to complete.
Bar Screens
Grit Removal
- Gritis the term used for small, but dense material such as sand, dirt, or broken glass. If not removed separately grit can cause wear and damage to mechanical devices in a treatment plant. There are several methods to remove grit, though the most common is to send it through a channel where the speed of the water is such that the grit settles and can be removed, while the …
Sedimentation
- Once the larger and smaller objects and grit have been removed the rest of the suspended materials are removed using gravity in large sedimentationTemplate:Sedimentation (water treatment)tanks (also called clarifying tanks). These tanks can be either circular or square, depending on what matters more to those designing them. Circular tanks can have...
External Links
Reference
- Davis, Mackenzie L., Masten, Susan J. (2004) Principles of Environmental Engineering and ScienceNew York, McGraw-Hill
