What is the process of primary treatment of wastewater?
Primary treatment removes material that will either float or readily settle out by gravity. It includes the physical processes of screening, comminution, grit removal, and sedimentation. Screens are made of long, closely spaced, narrow metal bars. They block floating debris such as wood, rags, and other bulky objects that could clog pipes or pumps.
What are the different types of wastewater treatment?
Primary sedimentation tanks may provide the principal degree of wastewater treatment, or may be used as a preliminary step in further treatment of the wastewater. When used as the only means of treatment, these tanks provide for removal …
What is the primary and secondary treatment of sewage?
Jun 27, 2017 · Primary treatment of wastewater involves sedimentation of solid waste within the water. This is done after filtering out larger contaminants within the water. Wastewater is passed through several tanks and filters that separate water from contaminants. The resulting “sludge” is then fed into a digester, in which further processing takes place.
What is a unit operation in wastewater treatment?
38 known as sedimentation. This is what occurs in the primary treatment process at a wastewater 39 treatment plant. 40 41 Both organic and inorganic solids are present in wastewater, and both can be either 42 suspended or dissolved. Settleable solids are the portion of suspended solids that readily settle in
Which substances are removed during primary wastewater treatment?
Primary Treatment As sewage enters a plant for treatment, it flows through a screen, which removes large floating objects such as rags and sticks that might clog pipes or damage equipment. After sewage has been screened, it passes into a grit chamber, where cinders, sand, and small stones settle to the bottom.

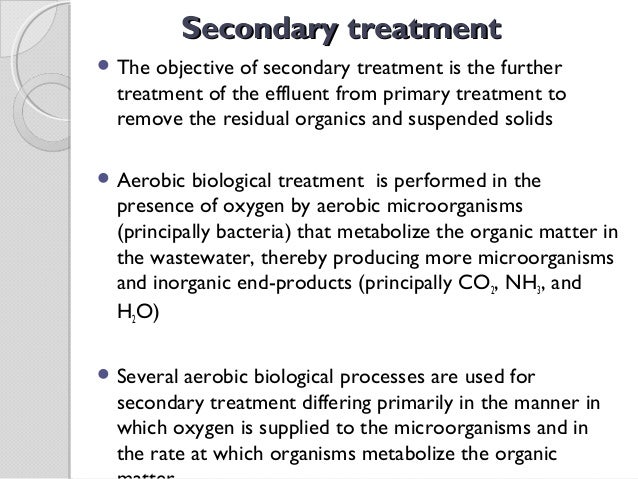

What is removed during secondary wastewater treatment?
During secondary treatment, biological processes are used to remove dissolved and suspended organic matter measured as biochemical oxygen demand (BOD). These processes are performed by microorganisms in a managed aerobic or anaerobic process depending on the treatment technology.
What is removed from wastewater during the first stages of water treatment?
Primary treatment (stage 1) This is when wastewater is temporarily held in large sedimentation tanks to remove settleable solids. With gravity, heavier solids sink to the bottom while lighter solids rise to the top. Chemicals can also be added as coagulants to remove more solids.Mar 7, 2021
What happens during primary treatment of wastewater?
Primary treatment of wastewater involves sedimentation of solid waste within the water. This is done after filtering out larger contaminants within the water. Wastewater is passed through several tanks and filters that separate water from contaminants.Jun 27, 2017
What is removed from wastewater?
screening and grit removal to remove large particles. sedimentation allows tiny particles to settle out from still water, which produces sewage sludge and effluent (the liquid which remains on top) the sewage sludge is digested anaerobically by specific bacteria.
What is primary and secondary wastewater treatment?
The main difference is the way each respective treatment is processed. Primary treatment works on sedimentation, where solids separate from the water through several different tanks. In contrast, secondary treatment uses aeration, biofiltration and the interaction of waste throughout its process.Nov 19, 2020
What are the 3 stages of wastewater treatment?
There are three main stages of the wastewater treatment process, aptly known as primary, secondary and tertiary water treatment.Dec 6, 2018
What are the 5 stages of wastewater treatment?
Treatment StepsStep 1: Screening and Pumping. ... Step 2: Grit Removal. ... Step 3: Primary Settling. ... Step 4: Aeration / Activated Sludge. ... Step 5: Secondary Settling. ... Step 8: Oxygen Uptake. ... Sludge Treatment.
What are the 3 steps to wastewater treatment?
The 3 Stages Of Wastewater TreatmentPrimary Treatment. Before wastewater even gets to primary treatment, it is funneled through collection systems and treated with odor-neutralizing chemicals. ... Secondary Treatment. In secondary treatment, the goal is to break down wastewater even further. ... Tertiary Treatment.Dec 20, 2018
What is grit removal?
Grit removal is the process used to remove sand, silt and grit from water. Grit (and sand) removal is often found in the headworks of wastewater treatment plants (WWTP).
What is the percentage of BOD removed in primary treatment?
Primary treatment typically removes about one-third of the BOD and one-half of the suspended solids in domestic wastewaters. Combined primary and secondary treatment is required to achieve 85 percent reduction in both BOD and suspended solids concentration to meet the regulatory definition of secondary treatment.
Which of the following impurities are removed by primary sedimentation tank?
(i) In Primary treatment First, floating debris of waste is removed by sequence filters. (ii) The Soil and small pebbles are removed by sedimentation in settling tanks. (iii)The sediment is called primary sludge and supernatant is effluent.
What is primary treatment?
Primary treatment. Primary treatment removes material that will either float or readily settle out by gravity. It includes the physical processes of screening, comminution, grit removal, and sedimentation. Screens are made of long, closely spaced, narrow metal bars. They block floating debris such as wood, rags, ...
How does removal of impurities work?
Removal is usually accomplished by biological processes in which microbes consume the organic impurities as food, converting them into carbon dioxide, water, and energy for their own growth and reproduction.
What is a trickling filter?
A trickling filter is simply a tank filled with a deep bed of stones. Settled sewage is sprayed continuously over the top of the stones and trickles to the bottom, where it is collected for further treatment. As the wastewater trickles down, bacteria gather and multiply on the stones. The steady flow of sewage over these growths allows the microbes to absorb the dissolved organics, thus lowering the biochemical oxygen demand (BOD) of the sewage. Air circulating upward through the spaces among the stones provides sufficient oxygen for the metabolic processes.

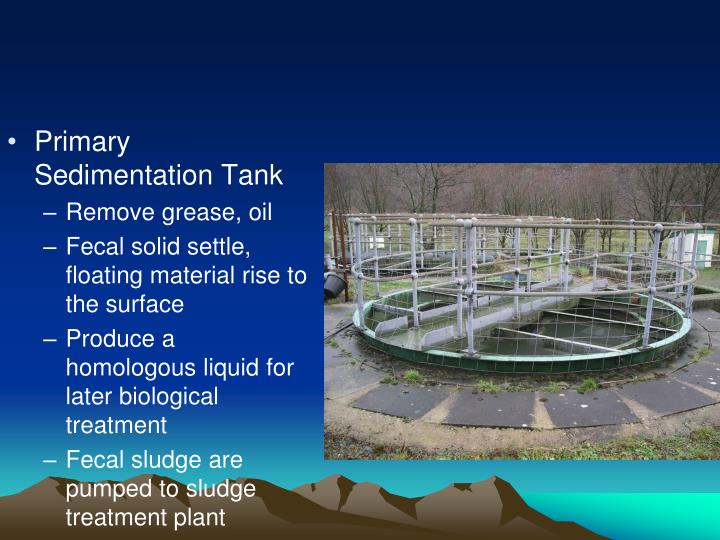

How long does it take for a primary clarifier to settle?
These tanks, also called primary clarifiers, provide about two hours of detention time for gravity settling to take place. As the sewage flows through them slowly, the solids gradually sink to the bottom. The settled solids—known as raw or primary sludge —are moved along the tank bottom by mechanical scrapers.
How much of the secondary sludge must be treated?
The recycled microbes are well acclimated to the sewage environment and readily metabolize the organic materials in the primary effluent. The remaining 70 percent of the secondary sludge must be treated and disposed of in an acceptable manner ( see Sludge treatment and disposal ).
How long does activated sludge stay in the aerator tank?
Under such oxygenated conditions, microorganisms thrive, forming an active, healthy suspension of biological solids—mostly bacteria —called activated sludge. About six hours of detention is provided in the aeration tank. This gives the microbes enough time to absorb dissolved organics from the sewage, reducing the BOD.
What is the purpose of a secondary clarifier?
Air circulating upward through the spaces among the stones provides sufficient oxygen for the metabolic processes. Settling tanks, called secondary clarifiers, follow the trickling filters. These clarifiers remove microbes that are washed off the rocks by the flow of wastewater.
What is primary treatment of wastewater?
Primary treatment of wastewater involves sedimentation of solid waste within the water. This is done after filtering out larger contaminants within the water. Wastewater is passed through several tanks and filters that separate water from contaminants.
What is the most effective method of secondary treatment of wastewater?
This method of secondary treatment of wastewater employs sand filters, contact filters, or trickling filters to ensure that additional sediment is removed from wastewater. Of the three filters, trickling filters are typically the most effective for small-batch wastewater treatment.
What is the third step in wastewater management?
This third and last step in the basic wastewater management system is mostly comprised of removing phosphates and nitrates from the water supply. Substances like activates carbon and sand are among the most commonly used materials that assist in this process.
How long does it take for a wastewater solution to be aerated?
The resulting mixture is then aerated for up to 30 hours at a time to ensure results.
What is the process of removing sediment from a wastewater system?
1. Biofiltration. Bio filtration uses sand filters, contact filters or trickling filters to ensure that any additional sediment is removed from the wastewater. 2. Aeration. Aeration is a lengthy process which increases oxygen saturation by introducing air to wastewater.
What are the stages of wastewater treatment?
What Are the Three Stages of Wastewater Treatment? There are three main stages of the wastewater treatment process, aptly known as primary, secondary and tertiary water treatment. In some applications, more advanced treatment is required, known as quaternary water treatment.
Where is wastewater held?
During primary treatment, wastewater is temporarily held in a settling tank where heavier solids sink to the bottom while lighter solids float to the surface. Once settled, these materials are held back while the remaining liquid is discharged or moved through to the more rigorous secondary phase of wastewater treatment.
What is tertiary treatment?
In the case of water treated by municipalities, tertiary treatment also involves the removal of pathogens, which ensures that water is safe for drinking purposes.
What are the objectives of primary treatment of wastewater?
1. Objectives of Primary Treatment of Wastewater. To produce a liquid effluent of suitably improved quality for the next treatment stage ( i.e.) secondary biological treatment. To active a solids separation resulting in a primary sludge that can be convenient ly treated and disposed of. 2.
How is sludge removed from a sediment tank?
Sludge is removed by scraping it into collecting hoppers at the inlet end of the tank. Sum removal is essential in primary sedimentation tanks because of the grease and other floating matter which is present in wastewater. The sludge serapes can return along the length of the tank a the water surface.
What is an up flow tank?
up flow tanks, usually square in plan and with deep hopper bottoms , are common in small treatment plants. Their main advantage is that sludge removal is cared out entirely by activity and no mechanical parts are required for cleaning them.
Is a septic system a BOD?
Septic may have a BOD's value 30 times greater than municipal raw wastewater. Supernatants form anaerobic digestion process or filtrate back washing may also be very high in waste strength. As such the performance of a primary clarification is not solely dependent on influent flow variations.
What is the last treatment before the wastewater enters the receiving stream?
Once the Phosphorous and Nitrates are eliminated then the effluent is sent out to a Chlorine Contact Tank for disinfection. UV or Chlorine can be used for Disinfection and Dissolved oxygen is added as the last treatment before the Wastewater which is now considered Treated Effluent enters the receiving stream.
What is the main objective of wastewater treatment?
The main objective of Wastewater Treatment is to separate solids from liquid then to treat both turning the solids into nonhazardous Bio-solids and water into non-threatening environmentally safe water to add back to the environment where it came from with the intention of using it again. 1. Primary Wastewater Treatment.
What is stage 2 of wastewater treatment?
Stage 2. – Includes Secondary Treatment using different methods of Biological Oxidation to further purify wastewater. The Conventional Activated Sludge Process is the most popular, using Aeration in a long, but effective process that entails mixing and aerating wastewater in a solution of microorganisms grown in the system that breakdown organic material and separates dissolved solids. This can be accomplished by:
What is anaerobic digestion?
Anaerobic Digestors. Most large Wastewater Treatment Plants use 2 Stage Anaerobic Digestion to treat the solids removed from the Primary and Secondary Treatment facilities. Treatment is needed for the Solids to be deemed safe for landfills.
What is slurry residual material?
These are the Solids that are removed in the primary treatment and secondary systems. Sewage sludge, semisolid, or slurry residual material that is produced as a by-product of the wastewater treatment processes, still needs more treatment and is considered volatile. Anaerobic Digestors.
How much BOD is removed from sewage?
Weekly averages may be up to 50 percent higher. A sewage treatment plant providing both primary and secondary treatment is expected to remove at least 85 percent of the BOD and suspended solids from domestic sewage.
What is the most standard secondary treatment?
The most Standard secondary treatment techniques that are used mostly in North America today, are the Conventional Activated Sludge Process. After effluent leaves the sedimentation tank in the primary stage it flows or is pumped to a Secondary treatment using one or the other of these processes.
