Intercritical heat treatment is the simplest way to enhance low alloys (carbon content less than 0.2%) steels to dual phase microstructure with superior strength–ductility combination. This involves quenching from a suitable temperature in the intercritical range between AC1 and AC3.
What is the temperature of intercritical heat treatment?
wherein the intercritical heat treatment comprises a annealing at 680° C. to 750° C. for 1 hour to 8 hours. 2. A process for manufacturing high toughness SA 508 Gr. 3 steels according to claim 1, wherein the tempering after the intercritical heat treatment is performed at the temperature lower than 635° C.
What is intercritically annealed steel used for?
Intercritically annealed steels are generally quenched from the two-phase field, and the quench is commonly the final heat treatment before the steel is put into service. This practice results in products with excellent strength and ductility combinations, and is used to produce dual-phase (DP) steel, for example.
What is the difference between sub-critical and intercritical annealing?
Sub-critical and intercritical annealing are different methods of producing spheroidal carbides. Spheroidal carbides can be obtained by either heating to a lower temperature for a longer period of time or using a higher temperature for a shorter time.
What is a heat treatment process for manufacturing high toughness steels?
A heat treatment process for manufacturing high toughness SA 508 Gr. 3 steels which comprises the steps of quenching and tempering, the improvement comprising adding a step of intercritical heat treatment between the quenching and tempering steps,
What is intercritical annealing?
Intercritical annealing. Intercritical annealing treatments involve heating to, and holding at, a temperature between the Ac1 and Ac3 temperatures to obtain partial austenitisation.
What are the four types of heat treatment?
What are the 4 Types of Heat Treating Processes? Common types of heat treating methods include annealing, hardening, quenching, and stress relieving, each of which has its own unique process to produce different results.
What is sub critical temperature?
Sub-critical annealing consists of heating the steel to below the lower critical temperature. This type of annealing is mainly carried out in the temperature range 630° – 700°C to reduce hardness by allowing recrystallisation of the microstructure to occur.
What happens when you anneal metal?
Annealing steel or any other metal involves heating it to a specific temperature and allowing it to cool at a specified rate. Doing so removes impurities in the grain, increasing the metal's ductility and reducing its hardness.
What are the 3 stages of heat treatment process?
Stages of Heat TreatmentThe Heating Stage.The Soaking Stage.The Cooling Stage.
What are the five main types of heat treatment?
Types of Heat TreatmentAnnealing. Annealing is one of the most important processes of heat treatment. ... Normalizing. Normalizing: The main aim of normalizing is to remove the internal stresses developed after the cold working process. ... Hardening. ... Tempering. ... Nitriding. ... Cyaniding. ... Carburising. ... Case Hardening or Surface Hardening.
What is the difference between subcritical and supercritical?
A substance that exists at temperature and pressure, above its critical point is known as a supercritical fluid. A substance that exit below its critical point is known as a subcritical fluid.
What are purposes of sub critical annealing?
Sub-critical annealing is a relatively low temperature heat treating process used to reduce the hardness and increase the ductility of casting. The sub-critical annealing process results in casting with improved machinability and a reduced likelihood of cracking during cold working operations.
What is the difference between subcritical and supercritical flow?
Subcritical Flow: Depths of flow greater than critical depths, resulting from relatively flat slopes. Froude number is less than one. Flow of this type is most common in flat streams. Supercritical Flow: Depths of flow less than critical depths resulting from relatively steep slopes.
Why would you want to anneal your metal?
Annealing makes metals more formable. When metal is stronger and more ductile, it gives manufacturers more leeway in the fabrication process. There is less risk of material fracturing from bending or pressing. Annealing can also improve a metal's ability to be machined and improve the lifespans of tools.
Why Should metal be annealed?
The main advantages of annealing are in how the process improves the workability of a material, increasing toughness, reducing hardness and increasing the ductility and machinability of a metal.
What is the main purpose of annealing?
Annealing is a heat treatment process used to reduce hardness, increase ductility and help eliminate internal stresses. Recyrstallisation annealing is applied to cold-worked metal to obtain nucleation and growth of new grains without phase change.
What is intercritical heat treatment?
Intercritical heat treatment is a new approach to develop a dual-phase steel with combinations of high strength and ductility in low carbon (less than 0.2% carbon) and low alloy steels. The term ‘dual-phase’ refers to the presence of ferrite–martensite phases, although some small amounts of bainite, pearlite and retained austenite may also be present [1]. One way of achieving these microstructures is by heating the steels into the intercritical region, which is between the A1 and A3 critical temperatures [2] and apply rapid quenching with no subsequent tempering process.
What is the prime modification to the heat treatment process?

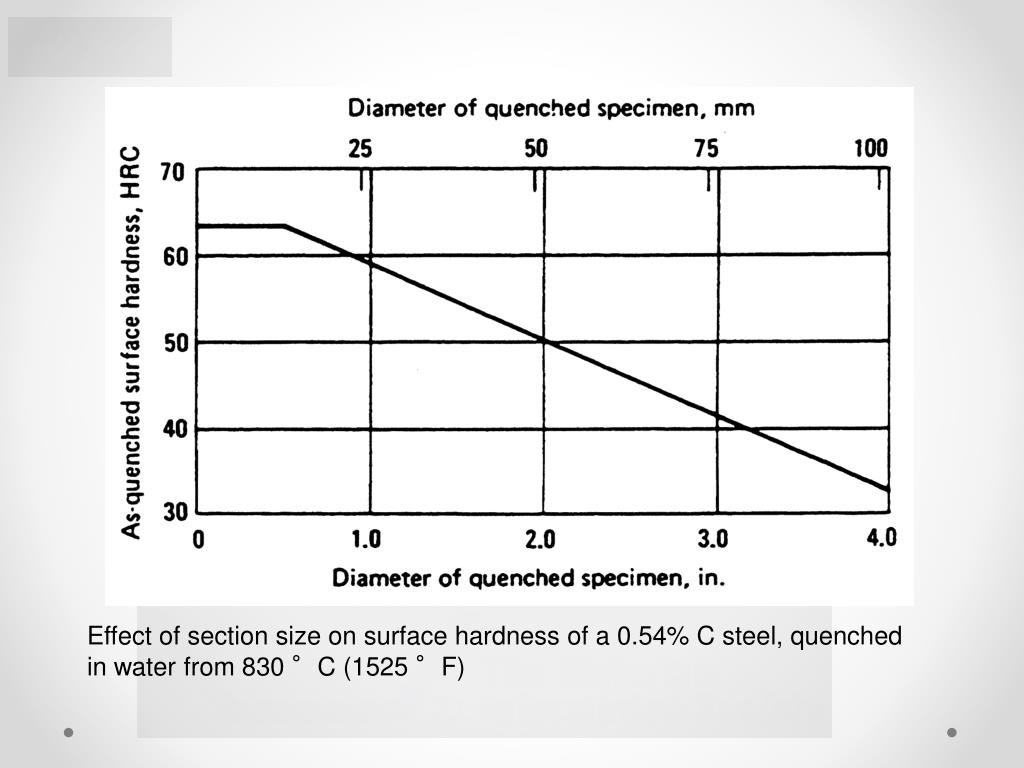

The prime modification to the heat treatment process is the introduction of IHT on the traditional heat treatment between the isothermal quenching and cooling steps. This experiment employs a simple heat treatment process by heating in the two phases ( α + γ) region between 730 and 830 °C and applied water quenching isothermally and room temperature cooling.
What is the IHT of 3115 steel?
This paper presents the effect of intercritical heat treatment (IHT) on the mechanical properties of AISI 3115 alloy steel. The steel was intercritically heat-treated at a temperature range of 730–830 °C followed by water quenching. The properties of tensile strength, fatigue, hardness and microstructure were evaluated from the mechanical tests and metallographic analysis, respectively. The experimental results showed that tensile strength increases but impact strength decreases with increasing intercritical temperature, correspondingly with the increase in amount of martensite in the steel. It was found that the resulting microstructures are predominantly ferrite with martensite, which is known as ‘dual-phase steels’. This indicates that both the soft and ductile ferrite matrix and strong and tough martensite particles play an important role in determining the dual-phase properties, especially continuous yielding behaviour of the steel. The fractographic analysis results are also discussed in this paper.
What are the four types of mechanical tests?
The steels were subjected to four types of mechanical tests, namely Charpy impact, fatigue, hardness, and tensile tests . In this study, the rotating fatigue machine was used in accordance to ASTM E466-82 standard to provide rotating-bending (flexural) motion in a reverse stress cycle by employing a cantilever rotated about its longitudinal axis. The tensile test was conducted using an Instron Universal Testing Machine in accordance to ASTM E8M. The crosshead speed applied was 1.00 mm/min up to specimen failure. The yield strength (0.2% offset) and tensile strength values were obtained instantly from the data acquisition system. Hardness test was done using Vickers hardness testing machine with an application of 10 kgf load.
What are some heat treatments?
Common heat treatments, such as full annealing, spheroidizing, normalizing, intercritical annealing, homogenizing, and hardening, are discussed. There are many resources available that cover various processes in greater detail or give specific thermal cycles for a given steel composition (2–18), but the basics of these thermal treatments are summarized here.
Why is intercritical annealing important?
For this reason, intercritical annealing is an extremely important process in the production of AHSS low-carbon sheets, and knowledge of precise phase stability and control of alloy content is necessary. Homogenizing heat treatments are used to reduce the elemental segregation that occurs during casting of steels.
Benefits of sub-critical Annealing
- The aim of the soft annealing process is to form an even distribution of spheroidal carbides in the steel, which will make the material softer and tougher. Normally, increasing the size of the spheroids will increase the steel’s machinability.
Application & Materials
- Spheroidised structure (globular carbides in a ferrite matrix) on carbon steels improves the cold formability of steels and permits severe deformation like cold drawing or deep drawing. But, a spheroidised structure of carbon-steels (< 0.4%C) is not always adapted for certain machining operations because the material is too soft and can stick on the cutting tools.
sub-critical Annealing Process Details
- Sub-critical and intercritical annealing are different methods of producing spheroidal carbides. 1. Sub-critical annealing 1.1. Spheroidal carbides can be obtained by either heating to a lower temperature for a longer period of time or using a higher temperature for a shorter time. Sub-critical annealing is based on the former (low temperature for ...
