What is TSS in wastewater treatment?
Total suspended solids (TSS) is that portion of the Total Solids that are. retained on a no-ash glass fiber filter disc of approximately 0.45 mm pore size. The wetted and weighed filter disc is placed in a filtering apparatus and a suction is applied. (see Fig-.A) A measured volume of wastewater is passed through the filter.
What happens if TSS is high in water?
Suspended solids are insoluble in water and will settle out of suspension with enough time. High TSS levels are often associated with higher levels of disease-causing microorganisms such as viruses, parasites, and some bacteria, which can cause symptoms such as nausea, cramps, diarrhea, and associated headaches.
What is TSS and why is it important?
TSS is a scale of the suspended material in the feed water, and if there happens to be a high degree of TSS levels, then the safety and performance of your water treatment equipment can be greatly affected.
What does TSS mean on the filter paper?
Reweigh the filter paper. The change in weight is the weight of the total suspended solids. TSS values are commonly expressed in ppm (mg solids per liter of water).
What is TSS water treatment?
TSS stands for Total Suspended Solids, and is the term used to refer to the solid particles suspended in water. It is defined as the total amount of solid material, suspended in water, that is retained by a filter.
What is TSS and TDS in water?
TSS is measured by weighing the dried material on the filter. TDS is defined as the portion of organic and inorganic solids passing through the same filter (Rice et al. 2012).
What is considered high TSS in wastewater?
Raw wastewater has a TSS typically ranging from 155 to 330 mg/L, with 250 mg/L being typical concentration. After going through primary treatment in a septic tank, a typical TSS value is less than 65 mg/L. After secondary treatment in an advanced treatment system, the TSS will normally be below 25 mg/L.
Why is TSS important in water?
TSS is an important water quality parameter measure for wastewater treatment operations and environmental health. Wastewater contains large quantities of suspended organic and inorganic material that must be removed through screening, filtration or settling/flotation methods prior to environmental discharge.
How do you reduce TSS in water?
Media filters are very effective at removing TSS, with removal rates ranging from 77 to 90 percent depending on the design. Vegetated filter, including swales, are also effective, with removal rates ranging from 39 to 78 percent depending on the design.
How do you calculate TSS in water?
TSS in mg/L can be calculated as: (dry weight of residue and filter − dry weight of filter alone, in grams)/ mL of sample * 1,000,000.
What is the normal range of TSS?
The size of the particles that don't pass through the filter (and are therefore considered to be TSS) depends on the specific filter used but may range in size between about 0.5 to 2 micrometres (µm).
What causes high TSS in wastewater?
High total suspended solids (TSS) values in the effluent are often related to excessive solids generation due to an increase in BOD (Biochemical Oxygen Demand) loading or can indicate problems with the bacteria like nutrient deficiency.
What is the average TSS in the water sample?
Typical Levels. In most situations, a total suspended solids concentration below 20 mg/L appears clear, while levels over 40 mg/L may begin to appear cloudy 13.
How does TSS affect water quality?
High total suspended solids in drinking water or wastewater can have both environmental effects and effects on human health. When it comes to water quality, high TSS may decrease water's natural dissolved oxygen levels and increase water temperature.
What does high TSS mean?
TOTAL SUSPENDED SOLIDS (TSS) High concentrations of suspended solids can cause many problems for stream health and aquatic life. High TSS can block light from reaching submerged vegetation. As the amount of light passing through the water is reduced, photosynthesis slows down.
What is the difference between TSS and turbidity?
TSS are actual physical particles in the water (like sediment), and turbidity is the effect on light caused by those particles (and anything else that affects light). Phathom sensors measure TSS directly as well as turbidity, using the same method for each—direct attenuated light.

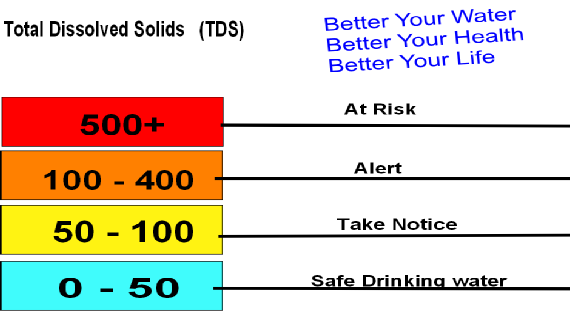

What is a good TDS level?
between 50-150Ans: Generally, the TDS level between 50-150 is considered as the most suitable and acceptable. Ans: If the TDS level is about 1000 PPM, it is unsafe and unfit for human consumption. 3.
How does TSS affect water quality?
High total suspended solids in drinking water or wastewater can have both environmental effects and effects on human health. When it comes to water quality, high TSS may decrease water's natural dissolved oxygen levels and increase water temperature.
What is the difference between total solids and total suspended solids?
Total Dissolved Solids (TDS) describes to the solid particles that can pass through a 2-micron filter. The solids in a liquid that cannot pass through this filter, i.e. the larger particles, are described as suspended solids.
What is the TDS of raw water?
Water can be classified by the level of total dissolved solids (TDS) in the water: Fresh water: TDS is less than 1,000 ppm. Brackish water: TDS = 1,000 to 10,000 ppm. Saline water: TDS = 10,000 to 35,000 ppm.
What is the TSS in water?
TSS is a measure of the mass of solids found in a volume of water that can be filtered by a 1.5 um glass fiber filter. Turbidity is a measure of the optical diffraction imparted by solids in the water. Both can be used to assess the impact of solids on a water body. [vii]
What are the effects of high TSS?
Adverse human impacts: High TSS levels are often associated with higher levels of disease-causing microorganisms such as viruses, parasites, and some bacteria, which can cause symptoms such as nausea, cramps, diarrhea, and associated headaches. [i] Suspended solids can also make streams less aesthetically enjoyable.
What is a total suspended solid?
Total suspended solids (TSS) describe particulates of varied origin, including soils, metals, organic materials, and debris that are suspended in a moving body of water. Turbulence keeps the particulates suspended in the water allowing the solids to be transported downstream.
How does suspended solid affect the environment?
Adverse impacts on the environment: Suspended solids reduce visibility and absorb light, which can increase stream temperatures and reduce photosynthesis. [ii] Impeding aquatic plant photosynthesis reduces the amount of food, habitat, and dissolved oxygen available for other species. [iii]
What is Clara gravity separator?
The Clara® gravity separator is often used as pretreatment to the Aquip for removal of suspended solids. For industries with a heavy solids load, Clara is often the product of choice, especially if there are no other pollutants that require more fine particulate filtering or polishing.
How Does TSS Affect the Water Quality?
When you are talking about water quality, due to the high level of total suspended solids the temperature of the water is dramatically increased and the total dissolved oxygen level decreases. This all happens just because the suspended particles absorb extra heat from solar radiation than the normal water molecules do.
How TSS Is Measure in water or wastewater treatment
The most accurate and common method of measuring the TSS is by weight. A water sample is filtered, dried, and weighed. This method is most accurate in all other techniques of measuring Total Suspended Solids. Sometimes it is also difficult and takes more time for perfect results.
What is TSS in water?
Total suspended solids (TSS) is the dry-weight of suspended particles, that are not dissolved, in a sample of water that can be trapped by a filter that is analyzed using a filtration apparatus. It is a water quality parameter used to assess the quality of a specimen of any type of water or water body, ocean water for example, or wastewater after treatment in a wastewater treatment plant. It is listed as a conventional pollutant in the U.S. Clean Water Act. Total dissolved solids is another parameter acquired through a separate analysis which is also used to determine water quality based on the total substances that are fully dissolved within the water, rather than undissolved suspended particles.
What is the term for the cloudiness of a fluid caused by large numbers of particles that are generally invisible to the
Turbidity – The cloudiness of a fluid caused by large numbers of particles that are generally invisible to the naked eye. Water pollution – Contamination of water bodies. Water quality – The chemical, physical, and biological characteristics of water based on the standards of its usage.
Do you need to wash a TSS filter?
Therefore, it is necessary to "wash" the filter and sample with deionized water after filtering the sample and before drying the filter .
Is dissolved solids a pollutant?
It is listed as a conventional pollutant in the U.S. Clean Water Act. Total dissolved solids is another parameter acquired through a separate analysis which is also used to determine water quality based on the total substances that are fully dissolved within the water, rather than undissolved suspended particles.
Is TSS a measure of particulate weight?
Definition problems. Although TSS appears to be a straightforward measure of particulate weight obtained by separating particles from a water sample using a filter, it suffers as a defined quantity from the fact that particles occur in nature in essentially a continuum of sizes.
What are TSS materials?
What Are They? TSS are solid materials, including organic and inorganic, that are suspended in the water. These would include silt, plankton and industrial wastes.
What is ALAR wastewater treatment?
ALAR's Wastewater Treatment Systems separates solids from water, the sources of which are not limited to: industrial waste, food processing, chemicals, metal finishing, grease and septic, and flexographic ink. Unless properly treated, wastewater can harm public health and the environment.
SOLIDS IN YOUR WASTEWATER
Wastewater solids take many forms. We can tackle this subject by classifying solids that are contained in raw wastewater and biological solids generated through the treatment process.
RAW VS BIOLOGICAL
Raw Wastewater: Raw wastewater solids are both dissolved and suspended in water.
Alternative method
The reason the regulatory community is seeking to define TSS is due in part to the imprecise nature of the TSS analytical method and the investigation of more appropriate methods to determine sediment concentration.
Advantages to SSC
Two other questions can be raised with respect to the precision and accuracy of the Partial Sample TSS method (EPA 160.2); the following are excerpts from the method: “Precision data are not available at this time (Section 9.1),” and “Accuracy data on actual samples cannot be obtained (Section 9.2).”
Comparing data
Obviously, many factors in the Partial Sample TSS method could result in lack of data consistency, even between duplicate samples.
Development and science
Our collective goal is to stop the impairment of our nation’s waterways. This is going to be a function of planning, conservation, smart development and good science. The knowledge base for storm water management is broadening every day. New methods need to be evaluated, and as better processes are identified, they need to be adopted.
