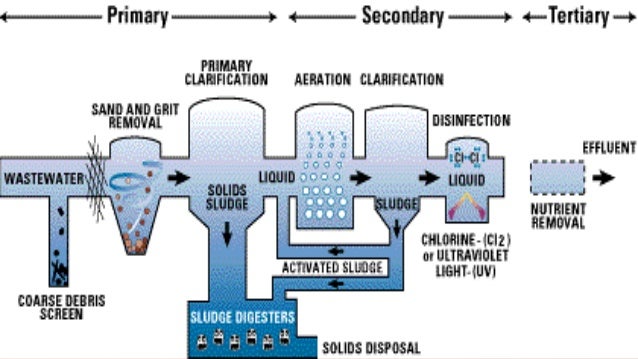

What Are the 3 Stages of Wastewater Treatment
- Primary Stage-separates settable organic solids & inorganic material that won’t degrade
- Secondary Stage-removes suspended & soluble solids converting them to settable solids using Biological Oxidation
- Tertiary Stage-uses chemical & physical treatment to create H2O closer to potable quality
What was the first step in the sewage treatment process?
The Sewage Treatment Process essentially includes three stages. The three stages can be divided into primary, secondary, and Tertiary. In each step, water is purified to the next level to access clean water for humans and the environment. There may be a situation where only one or two stages are required, but that depends upon the intent of using the water and what kind of …
What is the first step in treating raw sewage?
Typically, wastewater consists of domestic, industrial, and agricultural run-off. And the biggest challenge is separating each of these organic and inorganic compounds to obtain water that’s clean and safe for drinking and other purposes. Since this is a massive task, treatment of wastewater is done in three stages; primary, secondary, and tertiary; each of which deals with …
What are the 3 stages of wastewater treatment?
What are the 3 Stages of Wastewater Treatment? Primary Stage-separates settable organic solids & inorganic material that won’t degrade Secondary Stage-removes suspended & soluble solids converting them to settable solids using Biological Oxidation Tertiary Stage-uses chemical & physical treatment to create H2O closer to potable quality
What is the process that the sewage treatment goes through?
Feb 21, 2022 · The most common objects collected in the pre-treatment stage are sanitary towels and tampons, wet wipes, twigs, leaves… anything and everything that ends up in the drains will be collected by the filters. This debris is collected and disposed of, and the wastewater is then ready to go through the three stages of sewage treatment.
What are the stages of sewage treatment?
Treatment StepsStep 1: Screening and Pumping. ... Step 2: Grit Removal. ... Step 3: Primary Settling. ... Step 4: Aeration / Activated Sludge. ... Step 5: Secondary Settling. ... Step 6: Filtration. ... Step 7: Disinfection. ... Step 8: Oxygen Uptake.
What is the first stage of sewage treatment?
Primary TreatmentPrimary Treatment In the first of the three steps, the goal is to separate the organic matter and sludge from the rest of the water. This is done by having the wastewater flow through large settlement tanks where the solids will sink to the bottom and the grease and oils rise.Mar 31, 2020
What are the 3 stages of sewage treatment PDF?
Wastewater is treated in 3 phases: primary (solid removal), secondary (bacterial decomposition), and tertiary (extra filtration).Jan 3, 2021
What are the three stages in the treatment of water give the objectives of each stage?
The three stages of wastewater treatment are known as primary, secondary and tertiary. Each stage purifies water to a higher level. In some applications, only one or two stages are necessary. The level of treatment necessary depends on the water's intended use case, and what environment it will be discharged into.Mar 7, 2021
What is wastewater treatment
Treatment of wastewater is a major step in preventing the pollution of our freshwater resources. The process uses specialized machines to remove pollutants such as metals, debris, microorganisms, and biowaste from the water before it is returned to its source, be it surface water or groundwater.
There are four types of wastewater treatments
This treatment method involves the following steps: infiltration, grit removal, primary sedimentation tank, secondary sedimentation tank, and secondary clarification. This process is used to treat domestic wastewater and commercial waste.
Stages of wastewater treatment
Wastewater treatment is the process of cleaning wastewater before it is discharged back into waterways or utilized as a reclaimed water source. Here are the three stages that help us achieve that.
What is the last treatment before the wastewater enters the receiving stream?
Once the Phosphorous and Nitrates are eliminated then the effluent is sent out to a Chlorine Contact Tank for disinfection. UV or Chlorine can be used for Disinfection and Dissolved oxygen is added as the last treatment before the Wastewater which is now considered Treated Effluent enters the receiving stream.
What is stage 2 of wastewater treatment?
Stage 2. – Includes Secondary Treatment using different methods of Biological Oxidation to further purify wastewater. The Conventional Activated Sludge Process is the most popular, using Aeration in a long, but effective process that entails mixing and aerating wastewater in a solution of microorganisms grown in the system that breakdown organic material and separates dissolved solids. This can be accomplished by:
What is anaerobic digestion?
Anaerobic Digestors. Most large Wastewater Treatment Plants use 2 Stage Anaerobic Digestion to treat the solids removed from the Primary and Secondary Treatment facilities. Treatment is needed for the Solids to be deemed safe for landfills.
What is slurry residual material?
These are the Solids that are removed in the primary treatment and secondary systems. Sewage sludge, semisolid, or slurry residual material that is produced as a by-product of the wastewater treatment processes, still needs more treatment and is considered volatile. Anaerobic Digestors.
What is organic solid?
The organic solids are material that can be processed at the treatment facility through separating these solids from the rest of the wastewater we use simple gravity. Suspended solids that pass through screens and grit chambers are removed from the sewage in sedimentation tanks.
What is the main objective of wastewater treatment?
The main objective of Wastewater Treatment is to separate solids from liquid then to treat both turning the solids into nonhazardous Bio-solids and water into non-threatening environmentally safe water to add back to the environment where it came from with the intention of using it again. 1. Primary Wastewater Treatment.
How much BOD is removed from sewage?
Weekly averages may be up to 50 percent higher. A sewage treatment plant providing both primary and secondary treatment is expected to remove at least 85 percent of the BOD and suspended solids from domestic sewage.
Primary stage
The water flows from the filter through to a settling tank. This is where debris sinks to the bottom and oils float to the top, allowing the debris to be collected and disposed of. The heavier debris, known as sludge, is collected by a scraper that extracts it from the tank.
Secondary stage
After the visible sludge has been removed in the first stage, the cleaner water flows out of the settling tank and on to an aeration tank for the secondary stage. The water is still contaminated by invisible organisms, so air is pumped into it along with useful bacteria that feed on the harmful bacteria and metabolise the organic matter.
Tertiary stage
The treated water is then moved to the tertiary stage. At this point there are still chemicals and contaminants that need to be removed from the water, such as nitrogen, phosphorus, heavy metals and other organic matter.
Golden sewage
As an interesting side note, sewage has been found to contain a significant amount of gold. Researchers have estimated that in cities of a million people, there are precious metals such as gold, silver, platinum and copper in the biosolids that are worth up to $13m annually.
Primary Wastewater Treatment
In the aspect of water resources pollution, primary treatment is a basic necessity for water resource conservation. The concept and function of primary sewage treatment plant (also called POT (Primary Oxygen Treatment)) will be introduced here briefly:
Secondary Wastewater Treatment
The secondary wastewater treatment is a process that separates the organic solids from the wastewater to form effluent, which is treated and safe to release, and solids that can be used as a fertilizer. It is achieved through the following ways:
Tertiary Wastewater Treatment
The tertiary phase includes chemical treatments to stabilize the water for discharge into waterways or reuse within the industry.
Conclusion
It is essential to select the right technology for a particular application based on the characteristics of the wastewater and the desired results.
What are the stages of wastewater treatment?
What Are the Three Stages of Wastewater Treatment? There are three main stages of the wastewater treatment process, aptly known as primary, secondary and tertiary water treatment. In some applications, more advanced treatment is required, known as quaternary water treatment.
What is the process of removing sediment from a wastewater system?
1. Biofiltration. Bio filtration uses sand filters, contact filters or trickling filters to ensure that any additional sediment is removed from the wastewater. 2. Aeration. Aeration is a lengthy process which increases oxygen saturation by introducing air to wastewater.
What is tertiary treatment?
In the case of water treated by municipalities, tertiary treatment also involves the removal of pathogens, which ensures that water is safe for drinking purposes.
Where is wastewater held?
During primary treatment, wastewater is temporarily held in a settling tank where heavier solids sink to the bottom while lighter solids float to the surface. Once settled, these materials are held back while the remaining liquid is discharged or moved through to the more rigorous secondary phase of wastewater treatment.
