What is condensation Pan chemicals used for?
The condensate drain pan is meant to collect excess water generated during the air conditioning process. However, during the cold winter months, many homeowners only use the furnace. Because the condensate drain pan is located either directly above or directly below the furnace, the drain pain gets a blast of hot air with each heating cycle.
How do you fix condensate in the overflow Pan?
Apr 11, 2018 · However, if you notice standing water, that indicates a clogged or sluggish drain line. Turn off the A/C and call a qualified HVAC service contractor. Professional service to clear a condensate clog includes blowing out the drain line with air pressure, then cleaning and sterilizing the drip pan and drain line to eliminate residual algae. For long-term protection, time-release …
Do I need a drain pan treatment?
Sep 14, 2021 · The primary condensate pan is usually welded to the evaporator coil, making it harder to replace. Steps for how to access condensate drain pan may also be tricky in this case. Back up Drain Pan . The back up drain pan, or the AC overflow pan, can be found below the primary pan inside the unit or under the unit on the exterior. It’s often ...
When should I replace my air conditioner drain pan?
Pan-Treat condensate tablets control odors and prevent overflows caused by plugged condensate drain lines. They can also be used in humidifiers. They are very easy to use, as well as non-corrosive, non-toxic, and biodegradable. Clean pan by using two or more tablets per ton of system capacity. Add one tablet per month for maintenance.
How often should you clean your condensate line?
Kill any harmful bacteria or buildup and make sure your system continues to operate at peak performance by cleaning your drain line every 30 days.
How long does a Pan treatment last?
Pan treatment pads are placed inside the primary drain pan at the source and the chemical is released down the drain system. Pan pads last up to six months.Jan 31, 2017
How do you clean a condensate drain pan?
If there is standing water in the drain pan, it needs to be removed. You cansoak up water with towels or use a shop vac. Suction out water using a wet dry vacuum until the pan is clear of condensate. Use vinegar or dish soap to clean the drain pan, removing mold, algae, dust, dirt, and other particles.
Should there be water in my condensate pan?
A broken condensate pump. According to experts, small amounts of water in your AC drip pan are normal. When warm air passes over the cold coils, the water vapor condenses into water. This water will then travel down a small pipe into the drip pan.Aug 6, 2020
What is a pan Strip?
SANI PAN STRIPS – are an EPA registered product proven to help control mold, mildew, sludge and slime that can cause drain line clogs. Sani Pans can help prevent dirty sock syndrome and improve indoor air quality.
What is an AC Pan treatment?
Pan-Treat condensate tablets control odors and prevent overflows by plugged condensate drain lines. They can also be used on humidifiers. Pan-Treat is extremely easy to use, and is safe, non-corrosive, non-toxic and biodegradable.
What do you do when your AC drip pan is full?
Your best course of action includes the following:Turn the unit off.Cut the power to the unit.Check the drain line for leaves and other debris where it exits your home.Use a wet/dry vac to remove the standing water from the drain pan.Remove the cap from the condensate line.Inspect for visible blockage.More items...•Jul 3, 2016
How much water is normal in AC drip pan?
between 5 and 20 gallonsWhen the summer season is in full swing and humidity is high, it's normal for your air conditioner to drain anywhere between 5 and 20 gallons of water each day.Jun 21, 2021
How do you tell if your AC drain is clogged?
A clogged AC drain line symptoms include:Musty, moldy smell near your indoor unit or in air from the registers/vents.Standing water near the indoor unit.Water damage in areas near the indoor unit.AC system is not cooling your home.AC system shuts down or doesn't turn on.

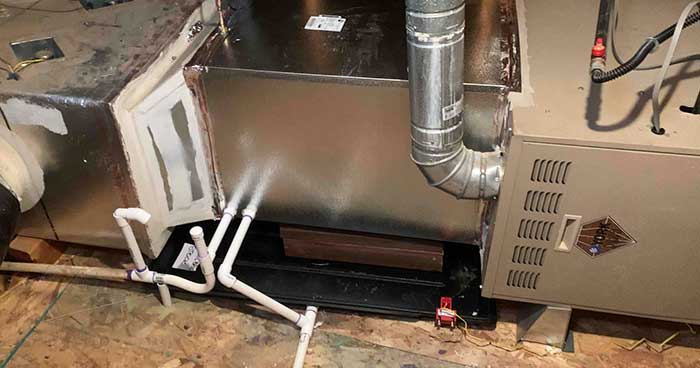

Why is the pan under my furnace full of water?
When you see water puddling around the furnace with the A/C running, you have a clogged condensate drain tube. Condensation from air conditioning coils contains bacteria that can form slime and clog the condensate pan drain tube. You can prevent slime and eliminate drain tube clogs in two easy steps.Mar 20, 2019
How much does it cost to unclog an AC drain line?
Clogged Drain Line If the condensate drain line becomes clogged, water can back up and overflow into your home, resulting in a messy leak. To flush the line or repair it can cost anywhere from $75-$250. In the case that the evaporator coil needs replacing, you are would pay between $400 to $950.
How much water should come out of AC drain line?
Your air conditioner should naturally drain water that was once humidity out of your home. On average, you can expect 5 to 20 gallons of condensate per day. If water is not draining, your climate may be too dry or your system is not functioning properly.Sep 13, 2021
How to Inspect Drain Pan

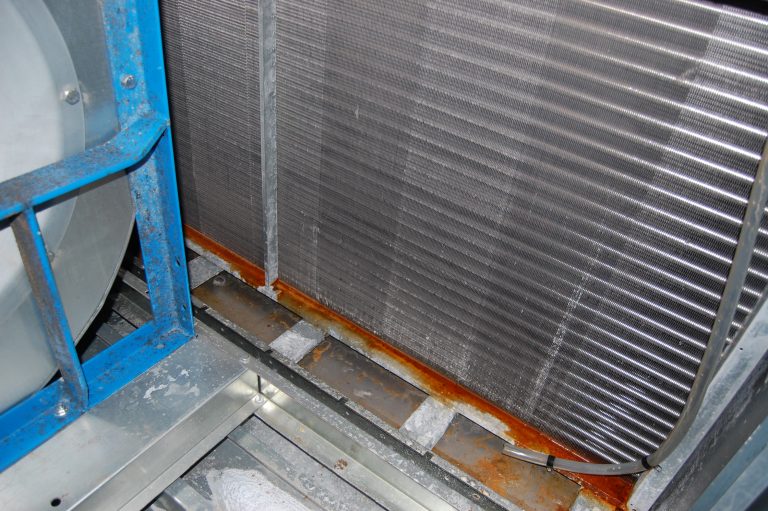

The overflow drain pan, located underneath your indoor evaporator coils, catches condensate that forms when warm air passes over cold evaporator coils. This condensation then flows into the PVC condensate drain pipe to be directed outdoors.
How to Inspect Condensate Drain Line
Locate your indoor air handler and look for the white PVC drain pipe coming from the unit and headed outdoors.
How it works
Place the Anti-Clog unit with felt pad into the drain pan so that the pad is in contact with condensation water. The chemical will slowly dissolve into the water effectively controlling the formation of bacteria keeping the drain lines free and clear to prevent clogging of the drainage system.
Where it it used
Condensation Systems: These systems are designed with drainage collection pans, troughs or piping. The cooling equipment will have cold coils that cause warm air to form water droplets on the heat exchanger surface of the condensing coils.
What happens if the evaporator drain pan is not sloped?
If the evaporator drain pan is not sloped toward the drain, the water will not drain from the evaporator pan properly. Additionally, the condensation drain piping must be sloped. The first thing to look at is the elevation of the air handler. It must be higher than the drain line.
Why does my evaporator coil freeze?
If the air filter is extremely clogged, a duct is collapsed, the evaporator coils are plugged with dirt or dust because no air filter was kept in the system, or there is a low charge of Freon ®, the evaporator coil will freeze. When it thaws, it will overwhelm the evaporator condensation pan and leak outside the air handling unit.
What is black pipe insulation?
The black insulation (called Rubatex pipe insulation) has a tear in it or doesn’t cover the entire suction line. Water will leak from the sweating copper pipes for the air conditioner. This line normally (in Air Conditioning air condition mode) operates below the dew point and will sweat if it is not insulated.
Why does my attic duct sweat?
Additionally, the insulation surrounding the ductwork needs to have airtight integrity and a good moisture barrier. If it does not have a moisture barrier and humid moist air penetrates the insulation to the ductwork then the ductwork will begin to sweat.
What is a vapor barrier?
Vapor Barrier on the Ductwork. The insulation surrounding the air handler supply sheet metal transition or ductwork is torn. The supply transition and duct can operate (under the right conditions) below the dew point and sweat. It is important that the transition has a vapor barrier around it.
Can condensation drains be repaired?
In either case, the condensation drain or any other thing that can cause a condensation leak should be repaired as it will cause water damage to wood and mold and mildew issues that can affect health. Moisture dripping into insulation also derates the insulation R-value so the insulation is not as effective.
Can a condensation pan rust?
Some evapor ator condensation pans are made of metal and can rust through over the years of use. In certain cases, the entire air handling unit must be changed out. In other cases, the evaporator coils and evaporator condensation pan must be changed.
